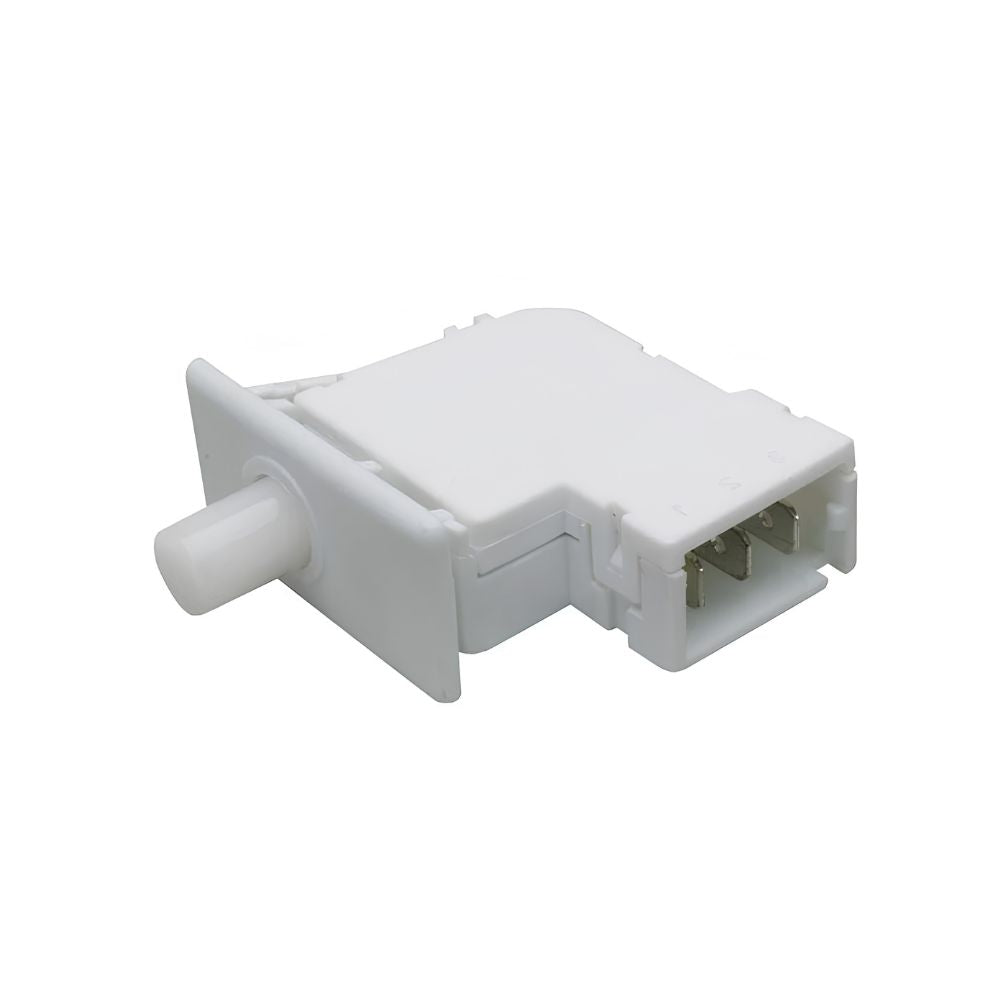

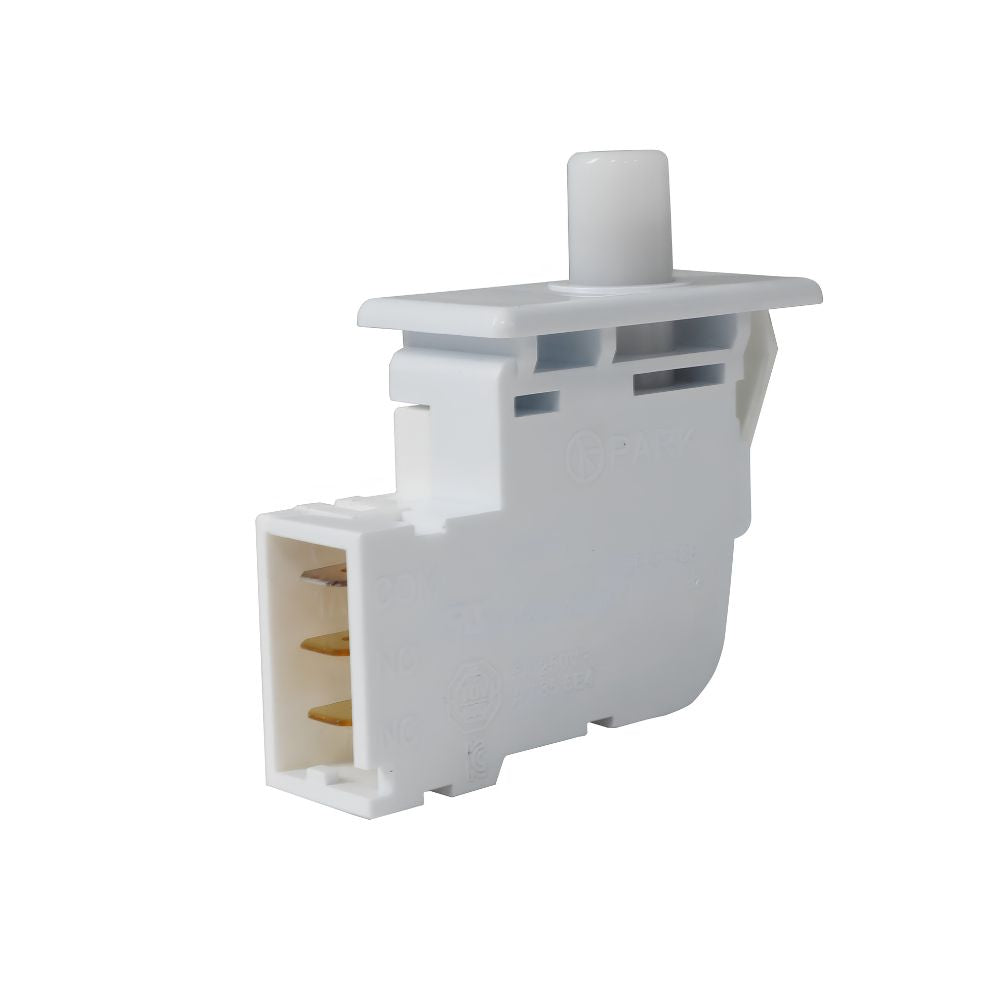

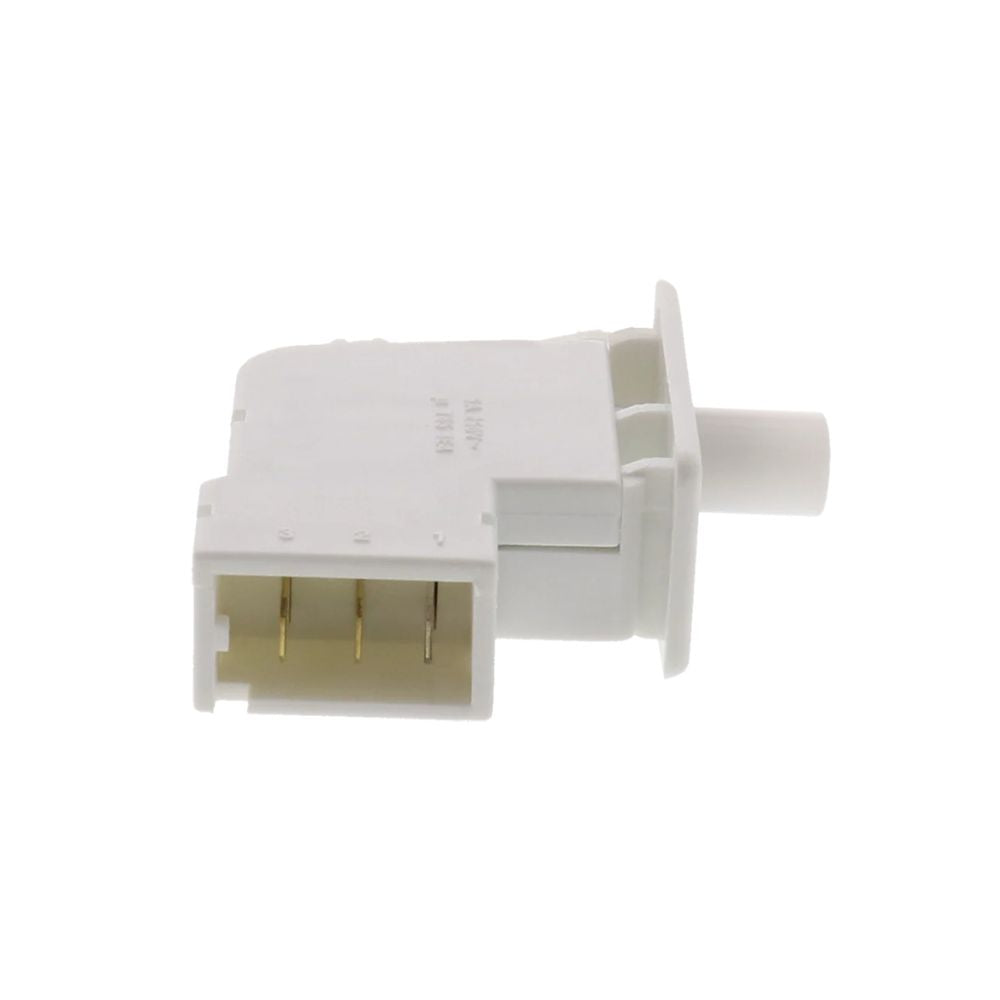

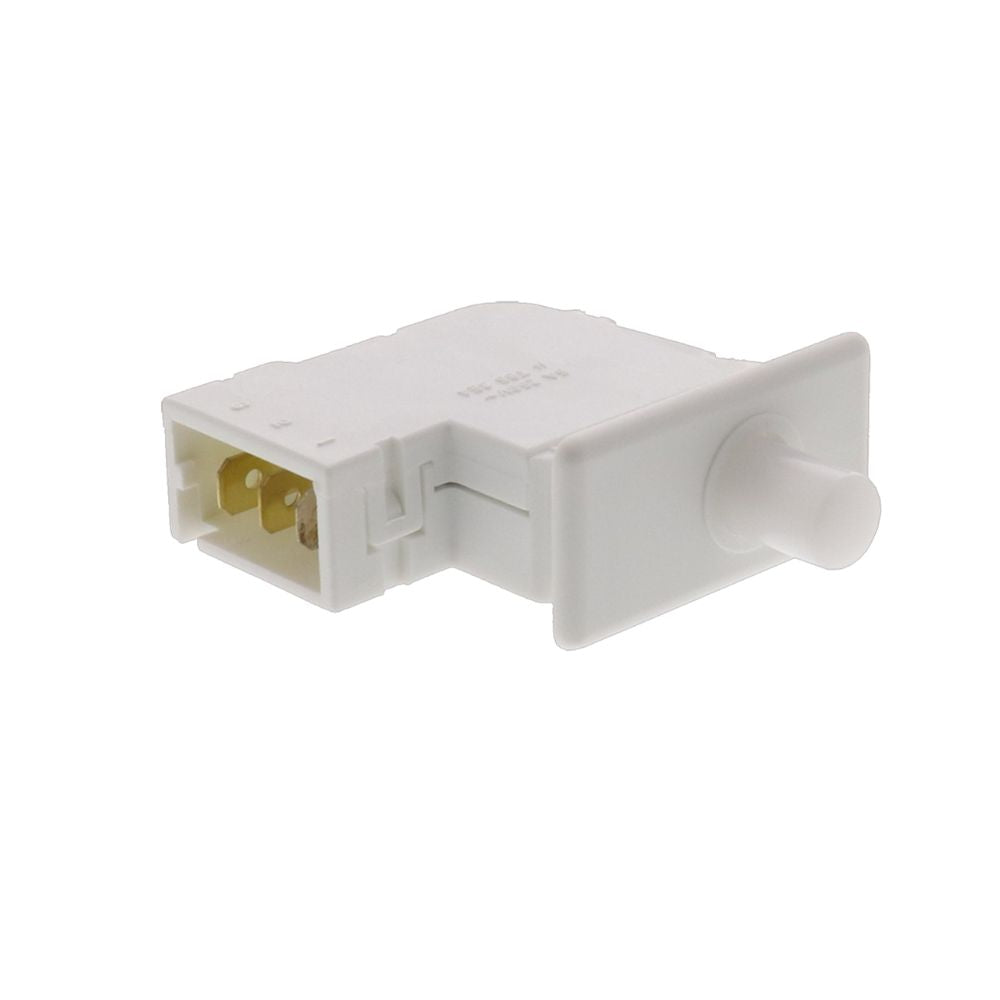

XPARTCO 6601EL3001A Door Switch Replaces EBF61496102
- Sku:
- 6601EL3001A
- Vendor:
- XPARTCO
Have a question?
XPARTCO 6601EL3001A Door Switch Replaces EBF61496102
XPARTCO 6601EL3001A Dryer Door Switch Replaces EBF61496102
The XPARTCO 6601EL3001A is an aftermarket replacement dryer door switch assembly compatible with select LG and Kenmore electric and gas dryers — including the DLE, DLEX, DLG, and DLGX series. The door switch is a safety component that detects whether the dryer door is open or closed. When the door closes, the switch is mechanically activated, completing the circuit and signaling the control board that it's safe to start the cycle. On some LG dryer models, this same switch also serves as a belt break safety switch — halting operation if the drive belt fails. Without a properly functioning door switch, the dryer will not start, will stop mid-cycle, or in rare cases continue to run when the door is open.
Rated 125/250V, 7.5/5A, 1/3HP, this switch measures 1-3/4"L x 1-3/4"W x 11/16"H with a white plastic and metal housing and glossy finish. It directly replaces 6601EL3001A, EBF61496101, EBF61496102, EBF63134603, ES3001A, ER6601EL3001A, AP4441527, AP7013115, 1268253, AH3529308, EA3529308, EAP3529308, EAP16551445, PD00007997, PS3529308, and PS16551445. Installs in 15–25 minutes with basic hand tools.
Quick Answer
The XPARTCO 6601EL3001A Dryer Door Switch fixes LG and Kenmore Samsung-built dryers that won't start, stop mid-cycle, or continue running with the door open. Also serves as a belt-break safety switch on some LG models. 125/250V, 7.5/5A, 1/3HP. 1-3/4"L x 1-3/4"W x 11/16"H, white plastic/metal. Replaces 6601EL3001A, EBF61496101, EBF61496102, EBF63134603, ES3001A, AP4441527, AP7013115, 1268253, AH3529308, EA3529308, EAP3529308, PS3529308, PS16551445. Compatible with LG DLE, DLEX, DLG, DLGX series and Kenmore LG-built dryers.
Common Problems This Part Fixes
- Dryer not starting even though the door is closed
- Dryer stopping mid-cycle for no apparent reason — door switch losing signal intermittently
- Dryer continuing to run with the door open (unsafe failure — replace immediately)
- Dryer stops after drive belt breaks (on models where this switch also acts as a belt safety switch)
- Interior dryer light not turning on when the door is opened
- Door switch button visibly broken, stuck, or fails to click when pressed
- Multimeter test shows the switch fails to change state when actuated
Replaces Part Numbers
This door switch directly replaces the following OEM and cross-reference part numbers:
EBF61496102, EBF63134603, 6601EL3001A, EBF61496101, ALG54721, AP7013115, EAP16551445, PD00085155, PS16551445
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This door switch is compatible with select LG and Kenmore electric and gas dryers, including:
- LG electric dryers — DLE series (DLE1101W, DLE2101W, DLE2250W, DLE3600W, DLE7150W and related models)
- LG electric dryers — DLEX series (DLEX3250V, DLEX3250W, DLEX3360V, DLEX3470V, DLEX3550V, DLEX3550W, DLEX3700W, DLEX3875V, DLEX3875W, DLEX3885C, DLEX3885W, DLEX4070V, DLEX4070W, DLEX4270V, DLEX4270W, DLEX5101W, DLEX5170V, DLEX5170W, DLEX5680V, DLEX6001V, DLEX6001W, DLEX7177RM, DLEX8000V, DLEX8000W, DLEX8377NM, DLEX8377N, DLEX8377WM, DLEX8500V and related models)
- LG gas dryers — DLG series (select models)
- LG gas dryers — DLGX series (DLGX6002V, DLGX8001V and related models)
- Kenmore / Sears dryers — 796-series (LG-built electric and gas models)
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- Dryer door safety switch — detects door open/closed state and signals the control board
- Doubles as a belt-break safety switch on some LG models — halts operation if the drive belt fails
- Electrical rating: 125/250V, 7.5/5A, 1/3HP — heavy-duty capacity for dryer safety circuits
- Dimensions: 1-3/4"L x 1-3/4"W x 11/16"H
- White plastic and metal construction with glossy finish
- Direct replacement for original LG and Kenmore door switches
- Replaces 6601EL3001A, EBF61496101, EBF61496102, EBF63134603, ES3001A, AP4441527, AP7013115, 1268253, AH3529308, PS3529308, PS16551445, and additional cross-references
- Compatible with LG DLE, DLEX, DLG, DLGX series and Kenmore 796-series dryers
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 15–25 minutes with basic hand tools
Product Specifications
| Part Number | 6601EL3001A |
| Also Replaces | EBF61496101, EBF61496102, EBF63134603, ES3001A (prior versions) |
| Part Type | Dryer Door Switch Assembly (Also Belt-Break Safety Switch on Some Models) |
| Condition | Aftermarket Replacement |
| Application | Electric and Gas Dryers (LG/Kenmore platform) |
| Voltage | 125/250V AC |
| Amperage | 7.5A @ 125V / 5A @ 250V |
| Horsepower Rating | 1/3 HP |
| Dimensions | 1-3/4"L x 1-3/4"W x 11/16"H |
| Color | White |
| Finish | Glossy |
| Material | Plastic / Metal |
| Compatible Brands | LG, Kenmore (LG-built) |
Installation Notes
Frequently Asked Questions
What is the difference between 6601EL3001A and EBF61496102?
These are the same door switch across LG's production revisions. 6601EL3001A is the original part number, and LG has issued EBF61496101, EBF61496102, and EBF63134603 as successive updated cross-references for the same component. All variants are fully interchangeable — if your dryer's parts diagram shows any of these numbers, this replacement is the correct part and covers all of them.
My LG dryer suddenly won't start — is the door switch always the cause?
Not always, but it is one of the most common causes. Other components that can prevent an LG dryer from starting include the thermal fuse, start switch, control board, and — on models where this part also acts as a belt safety switch — a broken drive belt. Test the door switch first with a multimeter set to continuity mode: with the door closed (pressing the switch button manually if needed), a working switch shows closed continuity. If the switch shows an open circuit when the button is pressed, it has failed and needs replacement. If the switch tests good, move on to checking the thermal fuse and start switch.
Does this switch also detect a broken drive belt?
Yes, on some LG dryer models. The 6601EL3001A serves a dual purpose on certain models — it acts as both the door interlock switch and the belt-break safety switch. When the drive belt breaks, the change in tension within the dryer cabinet releases a lever that opens this switch, halting operation. If your LG dryer suddenly stopped working and you suspect a belt issue, replacing this switch alone won't fix a broken belt — you'll need to replace the belt and confirm this switch's contact returns to normal afterward.
My dryer is running with the door open — what should I do?
This is a safety concern. Disconnect power to the dryer immediately and do not use it again until the switch has been replaced. A dryer running with the door open exposes you to a spinning drum and, on gas models, can interfere with proper combustion and airflow. The 6601EL3001A replacement restores normal safety behavior. Until the repair is complete, do not operate the dryer.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from durable white plastic and metal with the same electrical ratings (125/250V, 7.5/5A, 1/3HP) and dimensions as the original 6601EL3001A door switch assembly.
