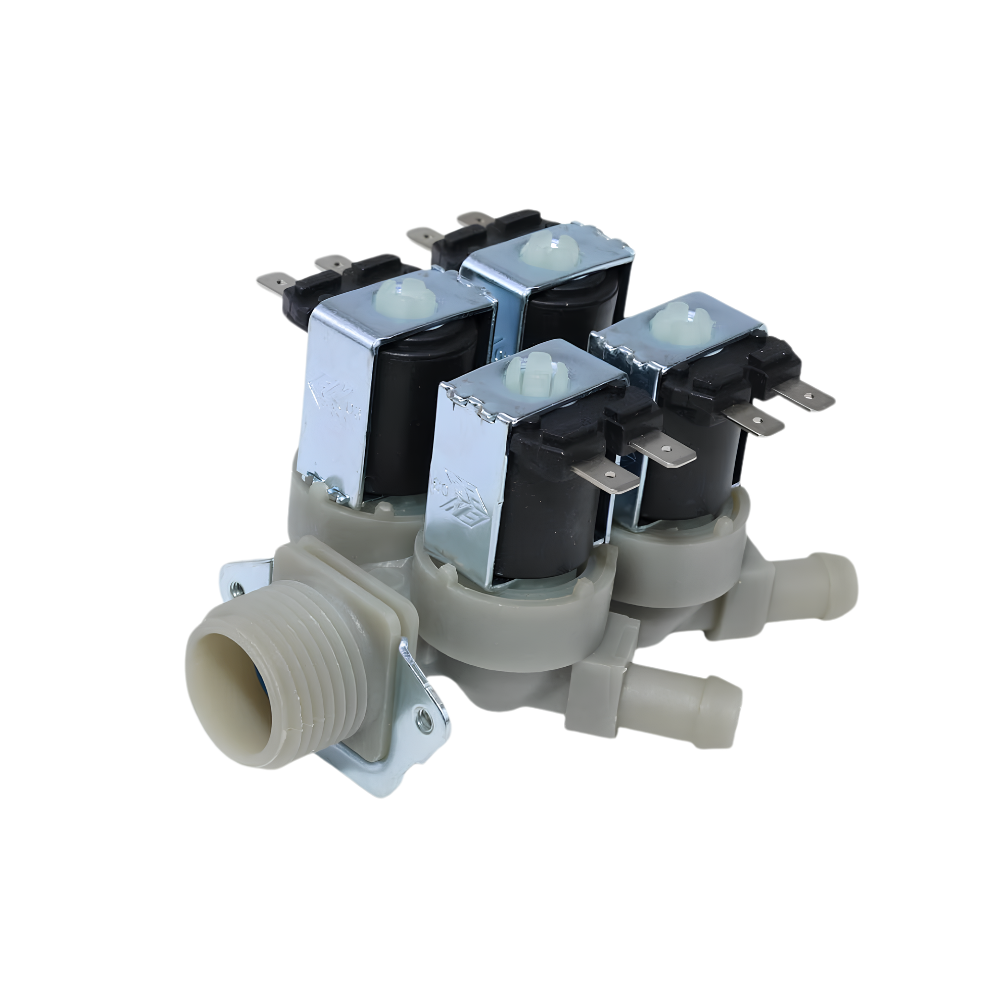

XPARTCO 5220FR2008C Washer Water Valve
XPARTCO 5220FR2008C Washer Water Valve
The XPARTCO 5220FR2008C is an aftermarket replacement water inlet and dispenser valve assembly for LG front-load washers, and also fits select Kenmore models. This valve connects to your home's water source and to the washer's solenoid wiring, controlling exactly how much water enters the tub and ensuring the correct fill level for each cycle. The assembly has 1 inlet and 4 outlets.
Rated 120V, 60Hz. Common failure causes include mineral or sediment buildup inside the valve body and general electrical wear in the solenoid coils. A failing valve produces a clear set of symptoms: the washer continuing to fill even after it should be full, filling slowly, overfilling, or leaking water into the drum when the washer is off. On some LG models, this can also trigger an FE error code specifically tied to the fill process. It directly replaces 5220FR2008C, 1345045, AH3527429, EA3527429, OEM13323375, AP4441122, ALG312490, PD00001833, PS3527429
Quick Answer
The XPARTCO 5220FR2008C Washer Water Valve fixes LG and select Kenmore front-load washers that keep filling past full, fill slowly, overfill, or leak water into the drum when off — sometimes accompanied by an FE error code. 120V, 60Hz, 1 inlet, 4 outlets. Replaces 5220FR2008C, 1345045, AH3527429, EA3527429, OEM13323375, AP4441122, ALG312490, PD00001833, PS3527429. Some LG steam washers use this valve alongside a separate hot water valve — if only one side is failing, you may only need to replace the specific valve at fault rather than the whole group.
Common Problems This Part Fixes
- Washer continues filling with water even after it should be full
- Washer filling slowly
- Washer overfilling
- Water leaking into the drum when the washer is turned off
- FE error code displayed during the fill portion of the cycle
Cross Reference Information
Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item.
Replaces Part Numbers
This washer water inlet valve directly replaces the following OEM and cross-reference part numbers:
5220FR2008C, 1345045, AH3527429, EA3527429, OEM13323375, AP4441122, ALG312490, PD00001833, PS3527429
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This water inlet valve is compatible with select LG front-load washers, and also fits select Kenmore washers built on the LG platform.
Note: LG uses several visually similar water valves across its washer lineup, including 5220FR2006H and 5221ER1003S. This part is also closely related to our 5220FR2008C cold water inlet valve listing — some model listings note that either may fit depending on the exact production run, but they are separate part numbers. Always confirm your exact part number — comparing your old valve's printed number and photo against the listing is the most reliable way to avoid ordering a similar-looking but incorrect valve. Contact our support team with your model number if you're unsure.
Key Features
- Aftermarket replacement water inlet and dispenser valve assembly
- Resolves "won't stop filling," "fills slowly," "overfills," "leaks when off," and "FE error code" symptoms
- 1 inlet, 4 outlets
- Rated 120V, 60Hz
- Sold individually
- Direct drop-in replacement — matches the original mounting and hose connections
- Replaces 1345045, AH3527429, EA3527429, OEM13323375, AP4441122, ALG312490, PD00001833, PS3527429
- Compatible with LG and select Kenmore front-load washers
- Aftermarket replacement built to OEM-equivalent quality standards
Product Specifications
| Part Number | XP5220FR2008C |
| OEM Part Number | 5220FR2008C |
| Part Type | Washer Water Inlet & Dispenser Valve Assembly |
| Condition | Aftermarket Replacement |
| Application | Front-Load Washers |
| Voltage | 120V |
| Frequency | 60 Hz |
| Inlets / Outlets | 1 inlet, 4 outlets |
| Weight | Approx. 0.60 lbs |
| Package Dimensions | 5.12" x 4.69" x 3.98" |
| Repair Difficulty | Easy to Moderate |
| Quantity | 1 valve (sold individually) |
| Compatible Brands | LG, Kenmore |
Installation Notes
Frequently Asked Questions
My washer shows an FE error code. Is this the valve I need?
Possibly. One customer reported an FE error appearing while the machine was still "filling," which pointed to one of the hot or cold water valves not working correctly. If your FE error consistently appears during the fill portion of the cycle, this valve is a reasonable place to start troubleshooting.
My washer has more than one water valve. Do I need to replace all of them?
Not necessarily. Some LG steam washers use a separate hot water valve plus a group of valves fed from the cold water main, and it's common for only one specific valve in that group to actually be bad. One customer confirmed this exact setup, testing and replacing only the single failing valve rather than the entire group, which resolved their issue.
How do I make sure I'm ordering the correct valve, since several look similar?
Check the part number printed directly on your old valve and compare it, along with a photo if available, against the listing before ordering. One customer specifically noted that several LG valves looked alike, and having a clear reference photo was what let them positively identify the correct replacement.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured to match the solenoid design, inlet/outlet configuration, and electrical rating of the original 5220FR2008C valve used in compatible LG and Kenmore front-load washers.
