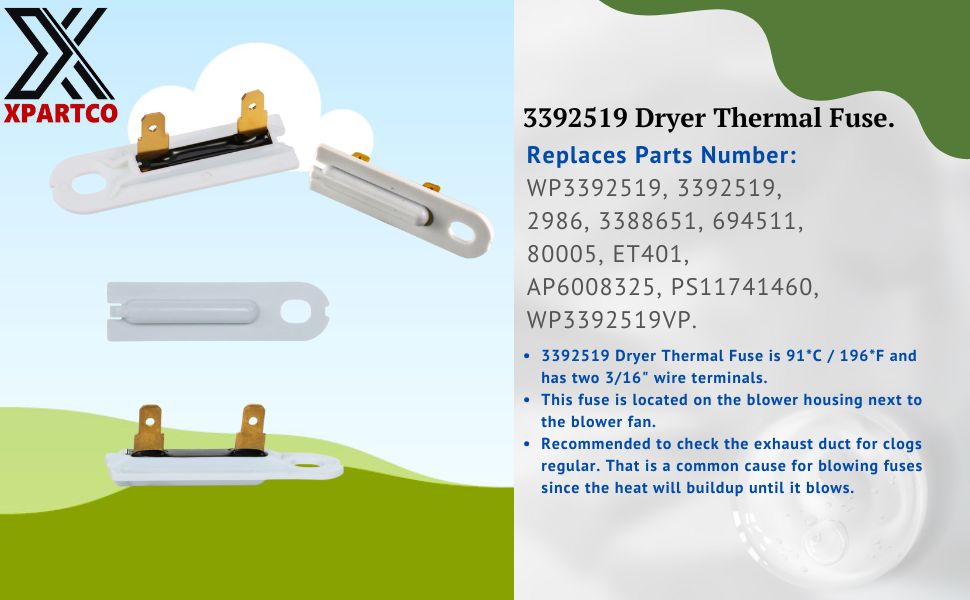

XPARTCO 3392519 Dyer Thermal Fuse Replaces WP3392519
- Sku:
- XP3392519
- Vendor:
- XPARTCO
Have a question?
XPARTCO 3392519 Dyer Thermal Fuse Replaces WP3392519
XPARTCO 3392519 Dryer Thermal Fuse Replaces WP3392519
The XPARTCO 3392519 is an aftermarket replacement dryer thermal fuse compatible with select gas and electric dryers from Whirlpool, Kenmore, KitchenAid, Maytag, Roper, Estate, Inglis, Crosley, Amana, Admiral, and Magic Chef. The thermal fuse is a critical one-time-use safety device mounted on the exhaust duct or blower wheel housing that monitors the dryer's operating temperature.
When the dryer overheats — typically due to a clogged exhaust vent or restricted airflow — the thermal fuse permanently opens the circuit and cuts power to the heating system to prevent a fire. Once blown, the thermal fuse cannot be reset and must be replaced. This part measures 2 inches long x 1/2 inch wide, features two 3/16-inch terminals, and opens at approximately 196°F (91°C). Important: always check and clear the exhaust vent when replacing this fuse, as restricted airflow is the most common cause of thermal fuse failure.
Quick Answer
The XPARTCO 3392519 Dryer Thermal Fuse fixes dryers that won't start, won't heat, or stop mid-cycle due to overheating. It is a one-time-use safety fuse that permanently opens at 196°F (91°C) to cut power and prevent fires. Compatible with select Whirlpool, Kenmore, KitchenAid, Maytag, Roper, Estate, Inglis, Crosley, Amana, Admiral, and Magic Chef dryers. Replaces WP3392519 and many other part numbers.
Common Problems This Part Fixes
- Dryer won't start at all
- Dryer runs but produces no heat
- Dryer stops mid-cycle and won't restart
- Timer advances but drum does not heat
- Dryer shuts off too soon before clothes are dry
- No continuity detected across fuse terminals during testing
Replaces Part Numbers
This thermal fuse directly replaces the following OEM and cross-reference part numbers:
3392519, WP3392519, 3388651, WE4X857, G4AP0500, 6L4101, 6L4101091C, ET401, 3388651, 694511, 80005, AWP47582, PD00002311, EAP11741460, AP6008325, PS11741460
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This thermal fuse is compatible with select gas and electric dryers from the following brands:
- Whirlpool dryers (including Duet and Cabrio series)
- Kenmore / Sears dryers (including Elite series)
- KitchenAid dryers
- Maytag dryers (including Centennial and Neptune series)
- Roper dryers
- Estate dryers
- Inglis dryers
- Crosley dryers
- Amana dryers
- Admiral dryers
- Magic Chef dryers
Always verify your appliance model number before ordering. Contact our support team if you're unsure.
Key Features
- One-time-use safety device — permanently opens at 196°F (91°C) to cut power and prevent dryer fires
- Mounts on the exhaust duct or blower wheel housing — easy access for DIY replacement
- Aftermarket replacement built to OEM-equivalent quality standards
- 2-terminal design — direct drop-in replacement, no modification required
- Broad compatibility across 11 major appliance brands
- DIY-friendly repair — installs with basic hand tools in under 30 minutes
- Budget-friendly safety fix — one of the most common and least expensive dryer repairs
Product Specifications
| Part Number | 3392519 |
| Part Type | Dryer Thermal Fuse |
| Condition | Aftermarket Replacement |
| Application | Gas and Electric Dryers |
| Opening Temperature | 196°F (91°C) |

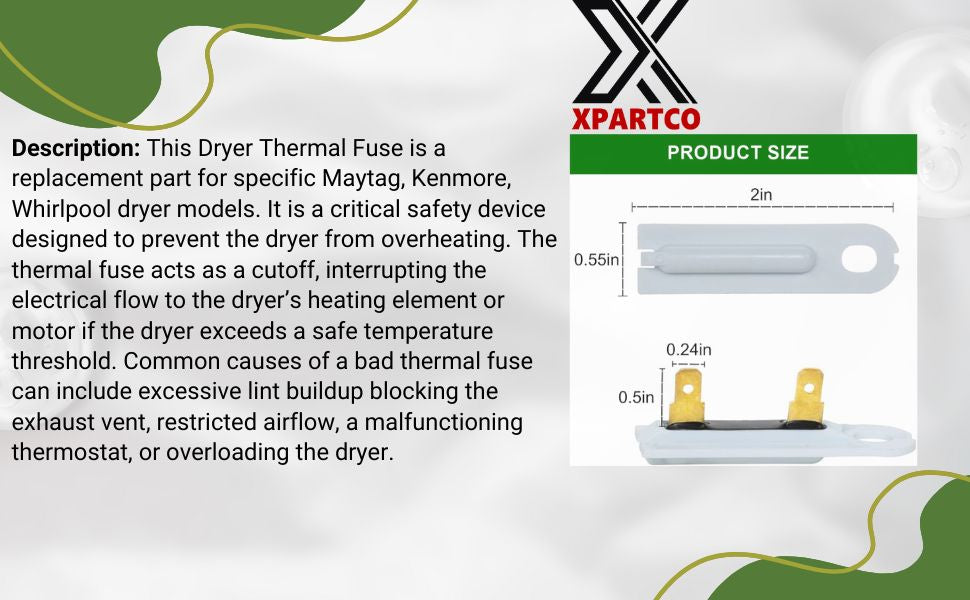

| Length | 2 inches |
| Width | 1/2 inch |
| Terminal Size | 3/16 inch (2 terminals) |
| Resettable | No — one-time use only, must be replaced when blown |
| Location on Dryer | Exhaust duct / blower wheel housing |
| Compatible Brands | Whirlpool, Kenmore, KitchenAid, Maytag, Roper, Estate, Inglis, Crosley, Amana, Admiral, Magic Chef |
Installation Notes
Frequently Asked Questions
Will the 3392519 fit my dryer?
This thermal fuse is compatible with select gas and electric dryers from Whirlpool, Kenmore, KitchenAid, Maytag, Roper, Estate, Inglis, Crosley, Amana, Admiral, and Magic Chef. Use the model search above to verify your model, or contact our support team before ordering.
What does a dryer thermal fuse do?
The thermal fuse is a one-time-use safety device that monitors the temperature inside the dryer. When the dryer overheats — typically due to a clogged exhaust vent — the fuse permanently opens the circuit, cutting power to the heating system to prevent a fire. Once blown, it cannot be reset and must be replaced.
How do I know if my thermal fuse is blown?
Test the fuse with a multimeter set to continuity mode. Touch the probes to each of the two terminals. A working fuse will show continuity (beep or near-zero ohms). A blown fuse will show no continuity (open circuit). If there is no continuity, the fuse is blown and must be replaced.
Why did my thermal fuse blow?
The most common cause is restricted airflow due to a clogged or kinked exhaust vent, a plugged lint trap, or a damaged blower wheel. Always check and clear the exhaust vent before or after replacing the fuse — failing to do so will cause the new fuse to blow again.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is designed to deliver reliable overheat protection at a more affordable price point.
Shop With Confidence
Express Parts Direct is a U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock parts for major appliance brands and ship quickly from our U.S. warehouse. Our team is available to help you verify compatibility before you buy.
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
🔍 Search Model Number
Type your full or partial model number above to instantly check if this part fits your appliance.
| Model Number | Manufacturer | Appliance Type |
|---|
⚠️ This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
