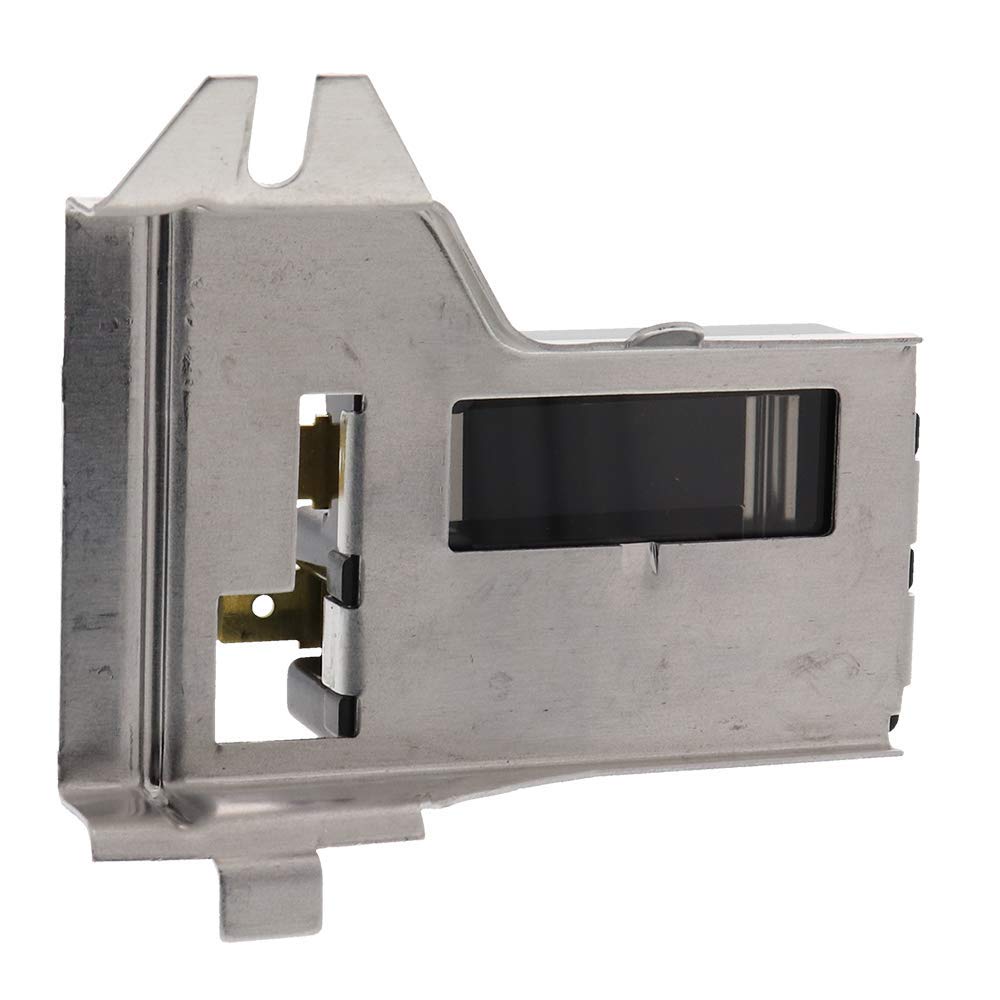

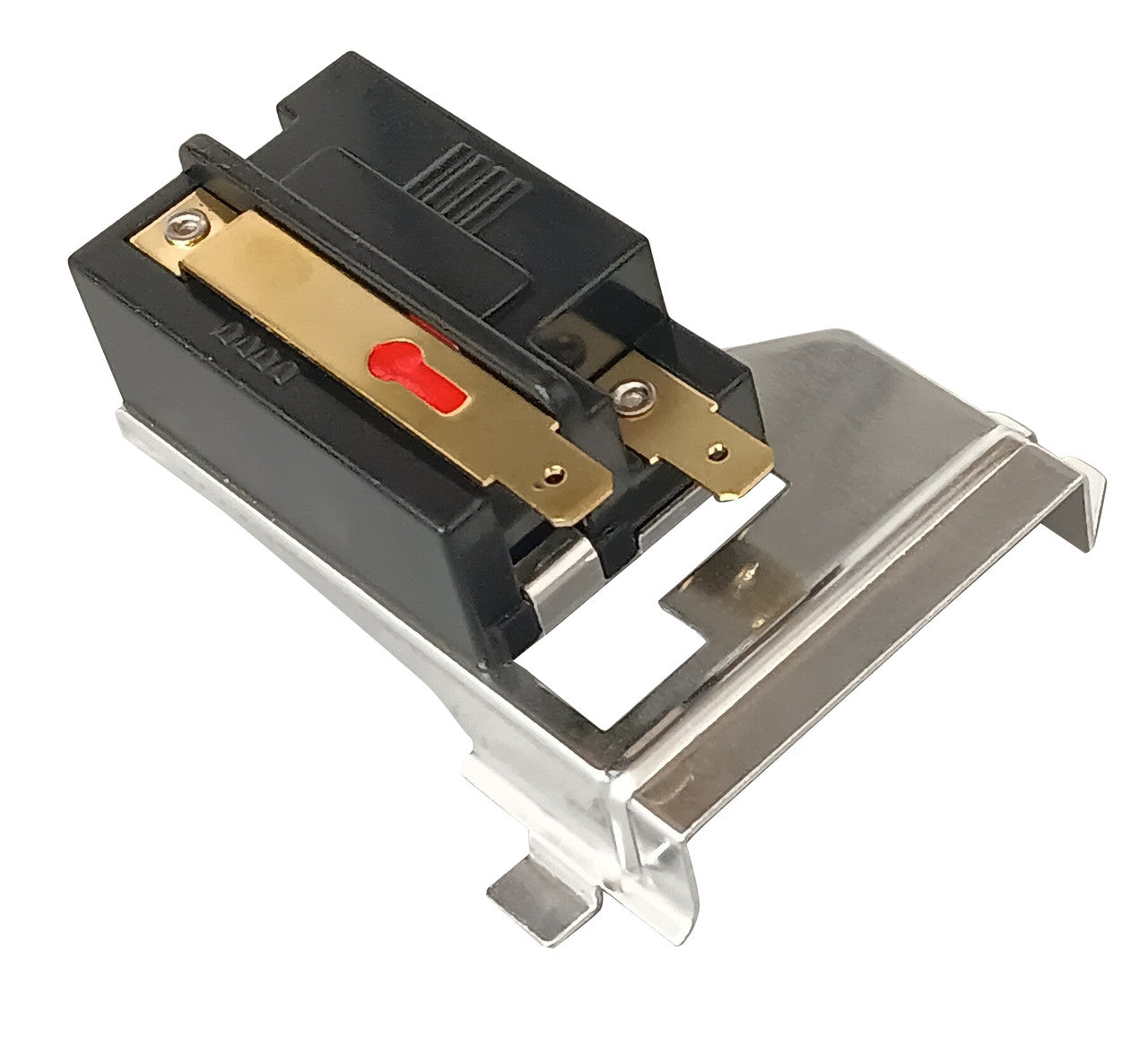

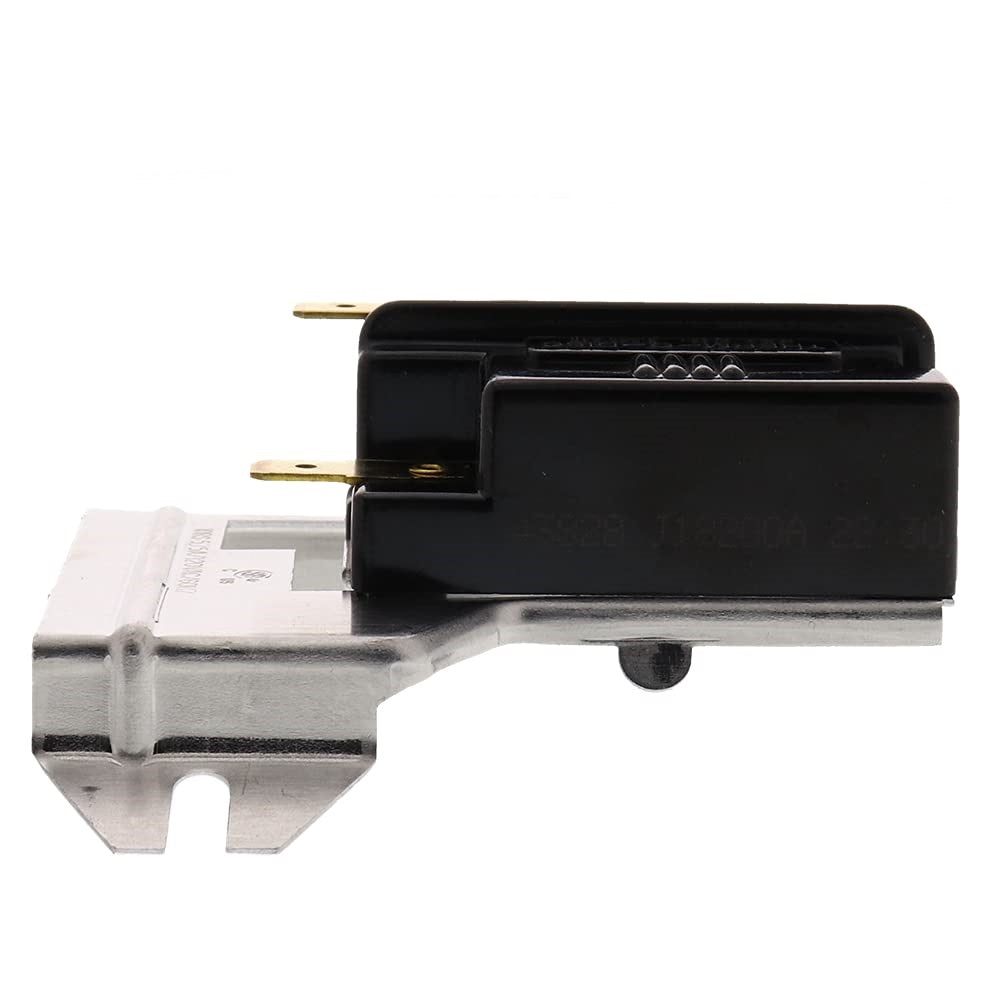

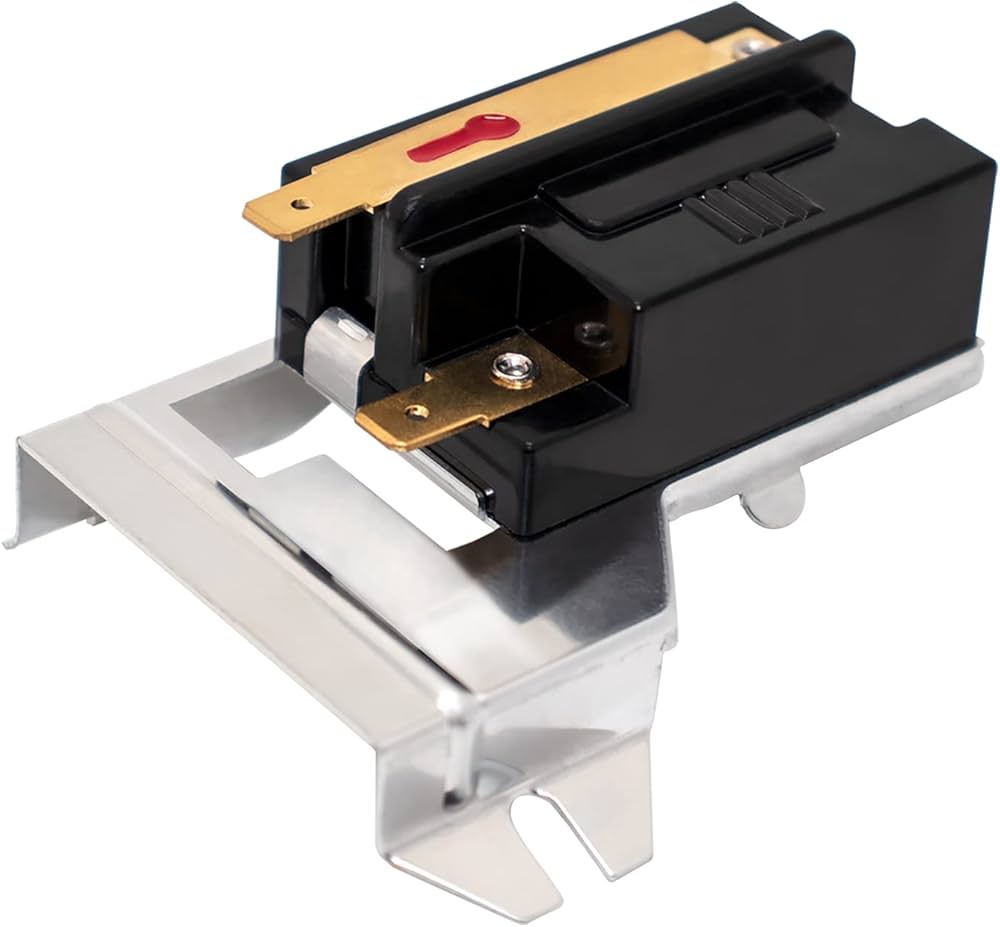

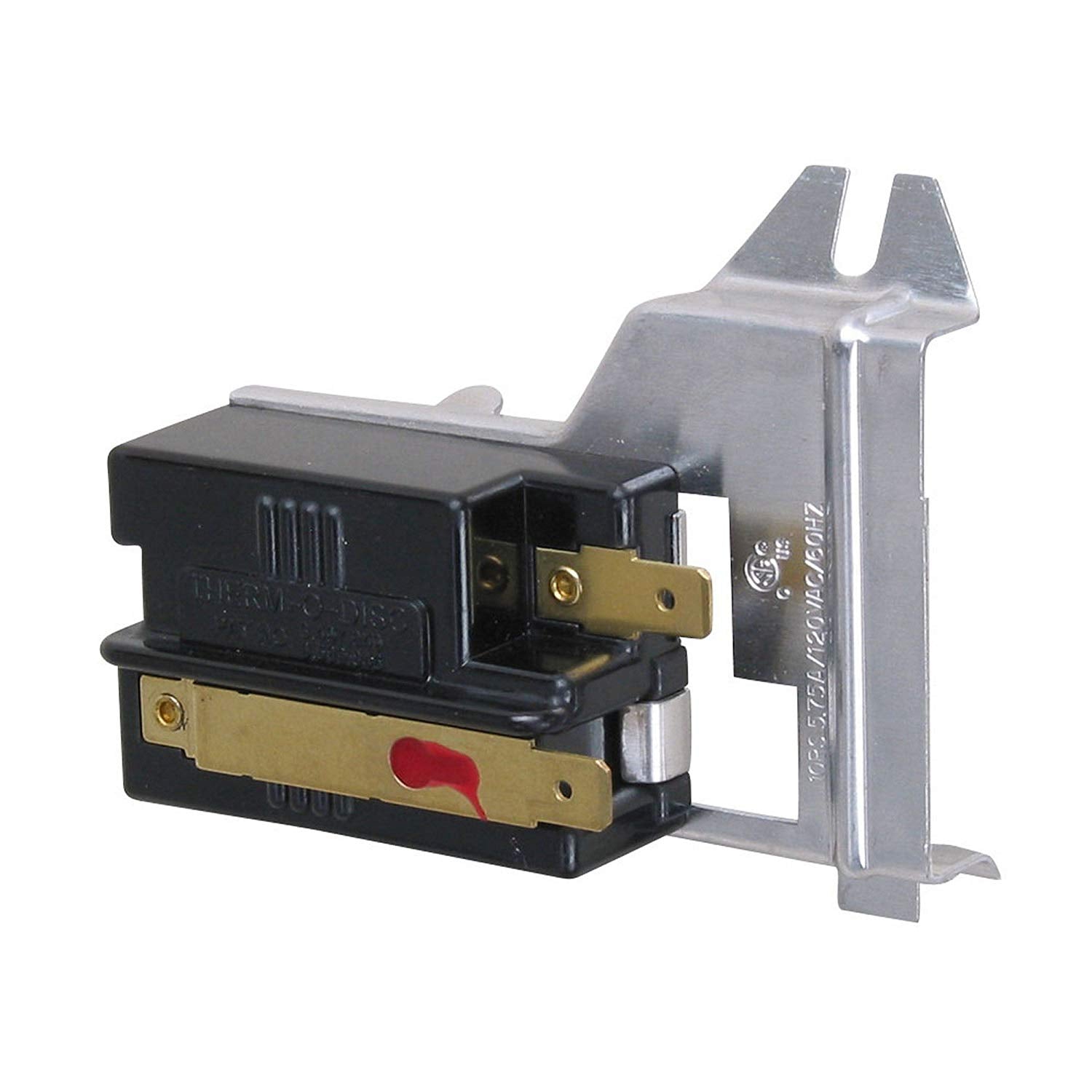

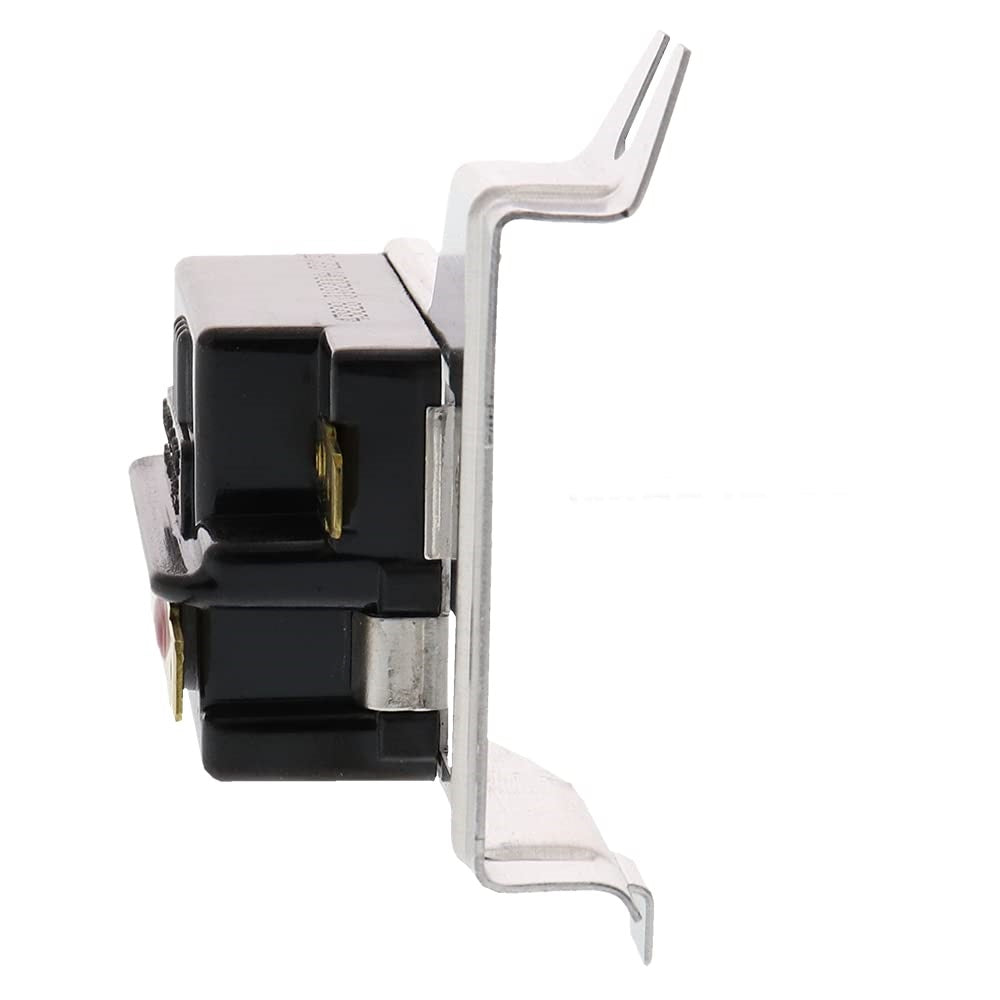

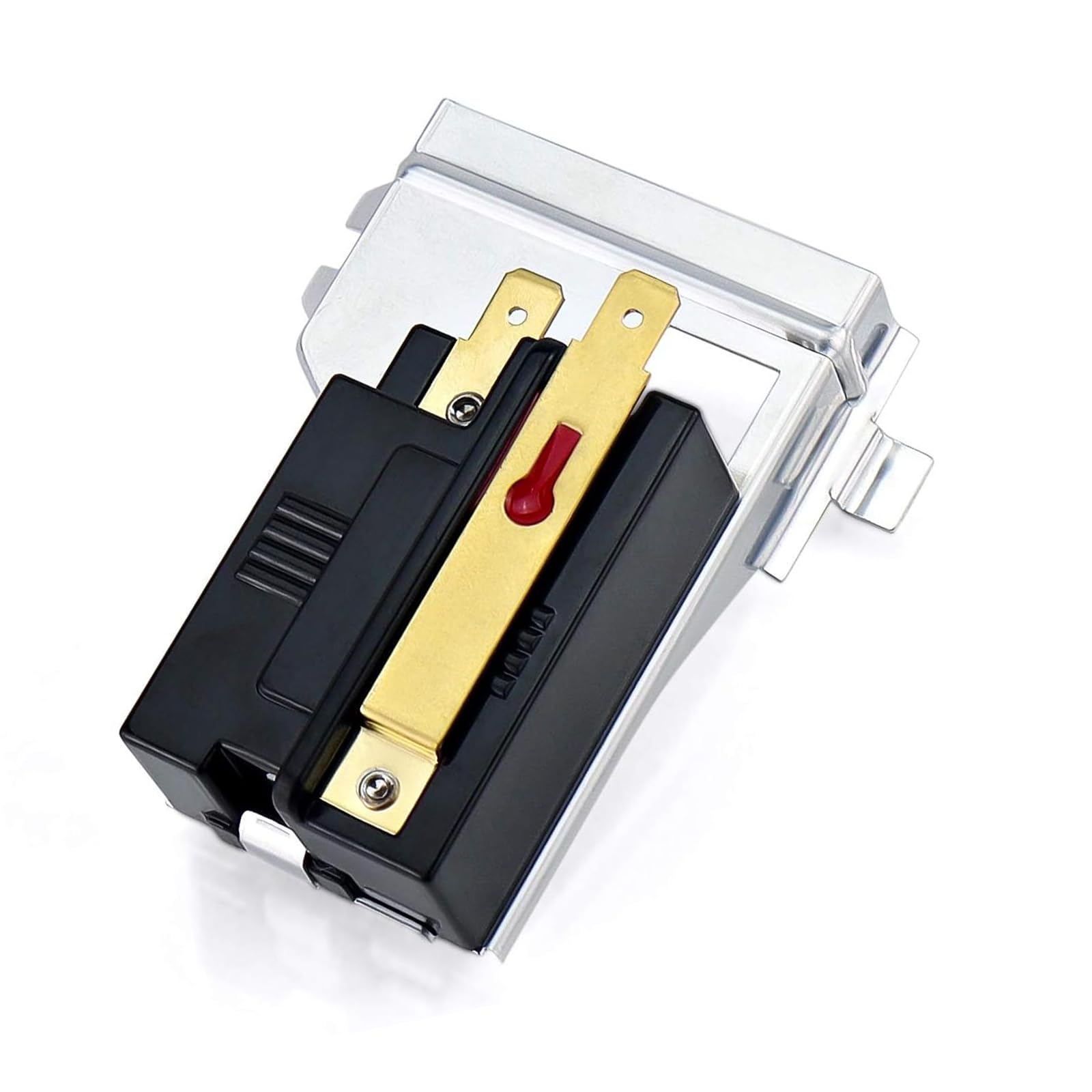

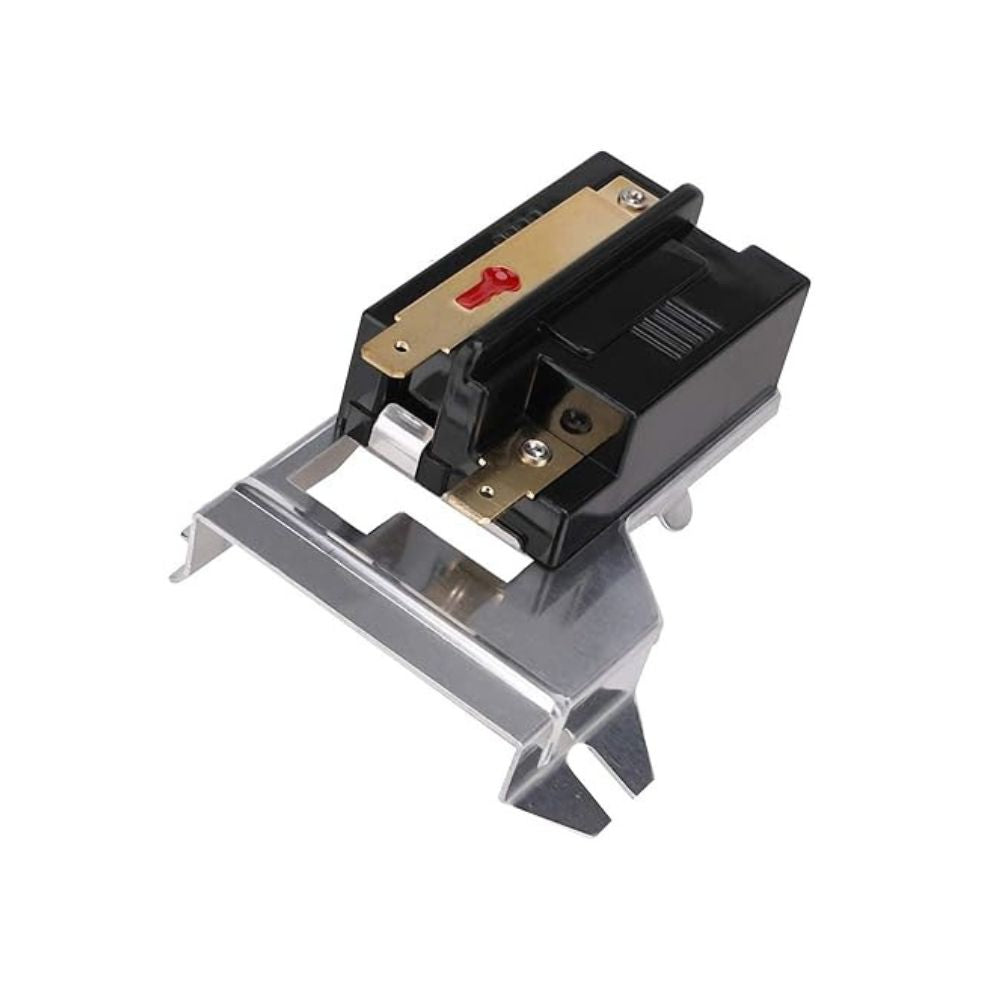

XPARTCO 338906 Dryer Flame Sensor Replaces WP338906
XPARTCO 338906 Gas Dryer Flame Sensor Replaces WP338906
The XPARTCO 338906 is an aftermarket replacement gas dryer flame sensor compatible with a wide range of Whirlpool-family gas dryers including Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Roper, Inglis, Crosley, Estate, Caloric, Magic Chef, Norge, and Speed Queen. The flame sensor is a radiant sensor located in the burner assembly directly across from the gas igniter. It monitors heat output from the igniter and signals the gas valve to open once the igniter reaches ignition temperature. This is a critical safety mechanism — the gas valve will not open until the sensor confirms the igniter is hot enough to light the gas, preventing dangerous unburned gas buildup inside the dryer.
When the flame sensor fails, the igniter may glow but the gas valve will never open — resulting in a dryer that tumbles but produces no heat. The sensor should show closed continuity (near-zero resistance) at room temperature when tested with a multimeter — an open reading confirms the sensor has failed. This part directly replaces WP338906 and a large number of older cross-reference numbers including DC32-00008A, Y303377, 14205529, and 3-3377. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO 338906 Gas Dryer Flame Sensor fixes gas dryers that tumble but produce no heat, where the igniter glows but the burner never lights. Located in the burner assembly across from the igniter. Should show closed continuity at room temperature — test with a multimeter before replacing. Compatible with Whirlpool, Kenmore, Maytag, Amana, KitchenAid, and many more. Replaces WP338906, DC32-00008A, Y303377, 14205529, and more.
Common Problems This Part Fixes
- Gas dryer tumbles but produces no heat — igniter glows but burner never lights
- Dryer takes multiple cycles or extremely long time to dry clothes
- Igniter glows and shuts off repeatedly without the burner ever firing
- Burner lights on first cycle but fails to relight during subsequent heat cycles
- Dryer shuts off heat mid-cycle — clothes still damp after a full cycle
- No heat even though the igniter, gas valve coils, and thermal fuse all test good
Replaces Part Numbers
This flame sensor directly replaces the following OEM and cross-reference part numbers:
WP338906, 338906, 14205529, 14210083, 14218928, 3-3377, 303377, 35001096, 56231, 63-5013, DE353, ER338906, K35-194, R0611503, TJ90DE353, WP338906VP, Y303377, Y56231, AWP47560, PD00002361, AP6008294, PS11741429, DC32-00008A, AP4201717, PS4204985, 6501EL3001A, EBD62566701, ALG52234, EAP3529181, PD00007476, AP4443773, PS3529181, 5303281135, 00635993, AFR17080, EAP459818, PD00007469, AP2142636, PS459818.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This flame sensor is compatible with select gas dryers only from the following brands:
- Whirlpool gas dryers
- Kenmore / Sears gas dryers (Whirlpool-built models)
- Maytag gas dryers
- Amana gas dryers
- KitchenAid gas dryers
- Jenn-Air gas dryers
- Admiral gas dryers
- Roper gas dryers
- Inglis gas dryers
- Crosley gas dryers
- Estate gas dryers
- Caloric, Magic Chef, Norge, and Speed Queen gas dryers
Note: This part is for gas dryers only. Electric dryers do not use a flame sensor or gas valve system.
Key Features
- Radiant flame sensor — monitors igniter heat and signals the gas valve to open once ignition temperature is reached
- Critical safety device — prevents the gas valve from opening until it is safe to ignite, protecting against unburned gas buildup
- Located in the burner assembly directly across from the gas igniter
- Should show closed continuity (near-zero resistance) at room temperature — test with a multimeter before replacing
- Replaces WP338906 and over 20 older cross-reference part numbers across multiple brand families
- Compatible with over a dozen major appliance brands on the Whirlpool platform
- Often replaced together with the gas valve coils (279834) and igniter (279311) for a complete burner repair
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Part Number | 338906 |
| OEM Part Number | WP338906 |
| Part Type | Gas Dryer Flame Sensor (Radiant Sensor) |
| Condition | Aftermarket Replacement |
| Application | Gas Dryers Only |
| Location | Burner assembly, across from the gas igniter |
| Normal Behavior | Closed continuity (near-zero resistance) at room temperature |
| Failed Behavior | Open circuit (infinite resistance) — gas valve will not open |
| Sold As | Single flame sensor |
| Compatible Brands | Whirlpool, Kenmore, Maytag, Amana, KitchenAid, Jenn-Air, Admiral, Roper, Inglis, Crosley, Estate, Caloric, Magic Chef, Norge, Speed Queen |
| Often Replaced With | 279834 Gas Valve Coils, 279311 Gas Igniter |
Installation Notes
Frequently Asked Questions
What does the dryer flame sensor do?
The flame sensor is a radiant sensor located in the burner assembly across from the igniter. It monitors the heat being generated by the igniter and sends a signal to open the gas valve once the igniter is hot enough to safely ignite the gas. This is a critical safety mechanism — if the sensor does not confirm that the igniter is at ignition temperature, the gas valve will remain closed, preventing unburned gas from building up inside the dryer. A failed sensor means the gas valve never opens, so the igniter glows but the burner never fires.
How do I test the 338906 flame sensor with a multimeter?
Unplug the dryer and disconnect the flame sensor from the wiring harness. Set your multimeter to the continuity or ohms setting and probe both sensor terminals. At room temperature, a working 338906 flame sensor should show closed continuity — near-zero resistance. If your multimeter reads OL (open loop) or infinite resistance, the sensor has failed and needs to be replaced. Note: heat exposure can temporarily change the sensor reading, so always test at room temperature.
My igniter glows but the burner never lights — is the flame sensor the cause?
It often is. When the igniter glows repeatedly but the burner never fires, the most common causes are a failed flame sensor, failed gas valve coils (279834), or — less commonly — a failed gas valve. The flame sensor is the first part to test because it is inexpensive and easy to access. If the sensor tests open (no continuity), replace it. If it tests good, test the gas valve coils next. The igniter itself is less likely to be the cause if it is visibly glowing, but it can also weaken over time.
Should I also replace the gas valve coils and igniter at the same time?
It is highly recommended — especially if your dryer is older. The flame sensor, gas valve coils (279834), and igniter (279311) all work together in the burner system and wear at similar rates. Since the dryer is already disassembled, replacing all three together in a single repair (often sold as a gas dryer repair kit) is more cost-effective than replacing them one at a time over successive repair sessions.
Is this an OEM or aftermarket part?
This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the specifications and performance of the original WP338906 flame sensor.
Shop With Confidence
A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase.
Model Compatibility
Search your appliance model number below. Supports partial or full model search.
🔍 Search Model Number
Type your full or partial model number above to instantly check if this part fits your appliance.
| Model Number | Manufacturer | Appliance Type |
|---|
⚠️ This is a partial compatibility list. Always verify your appliance model number before ordering. Contact our support team if you’re unsure.
