ERP W10434452 Dual Surface Element Switch Replaces WPW10434452

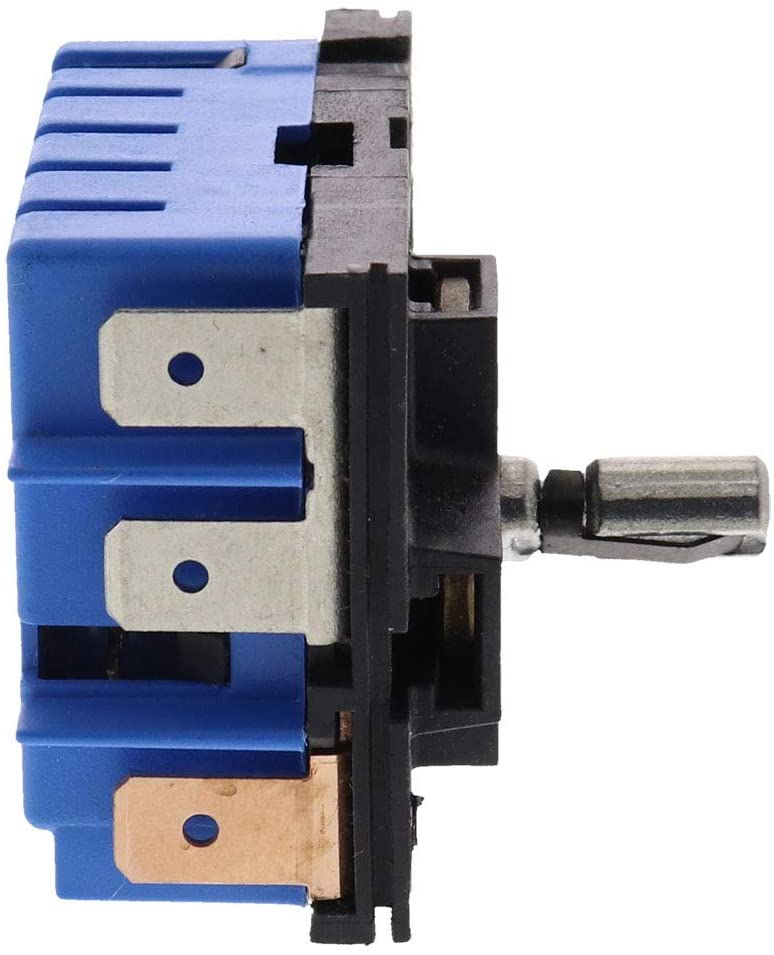

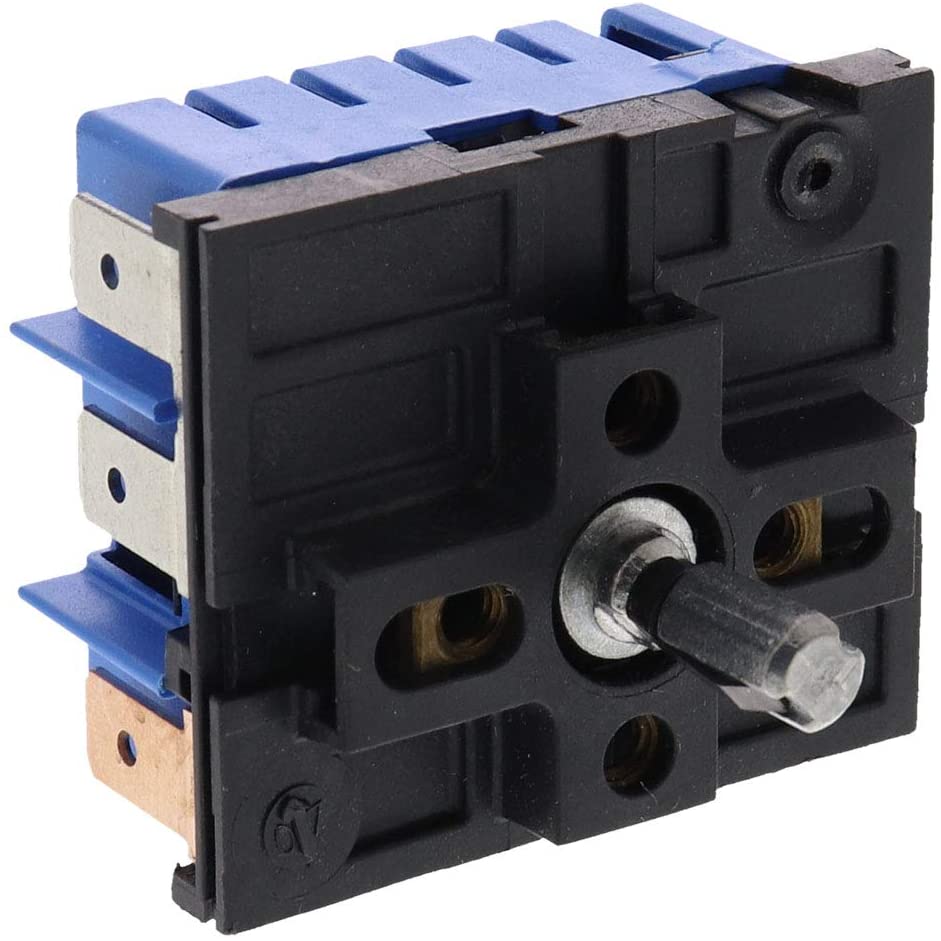

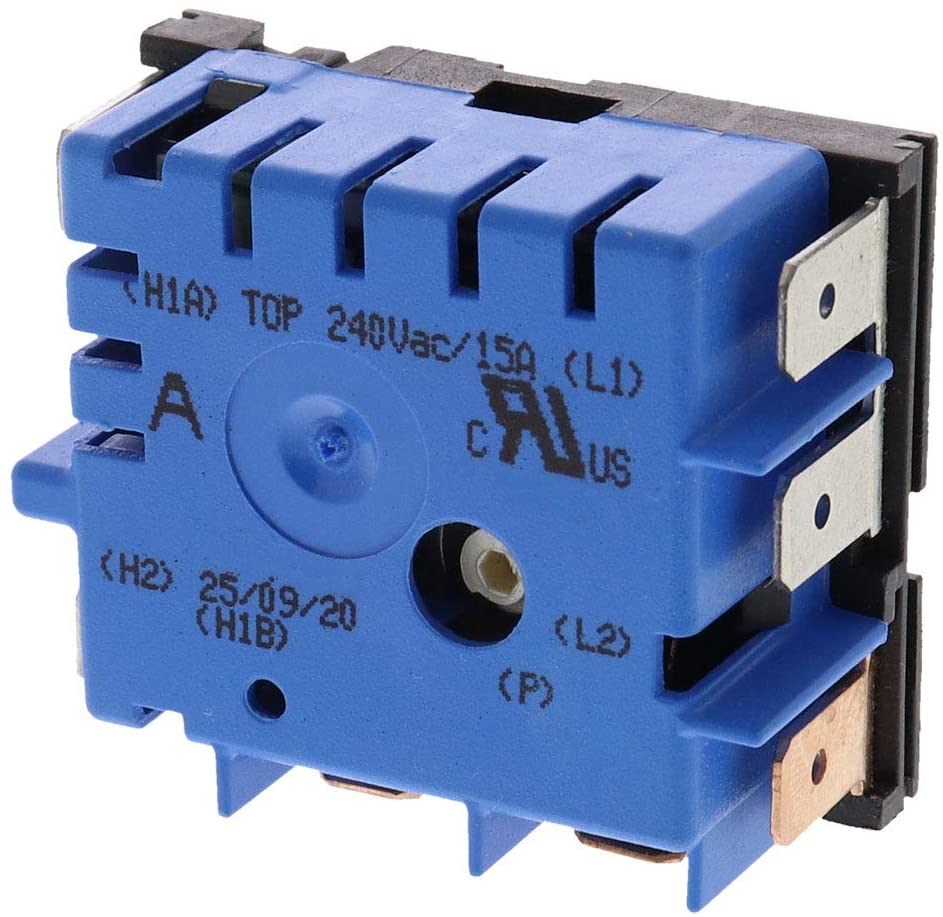

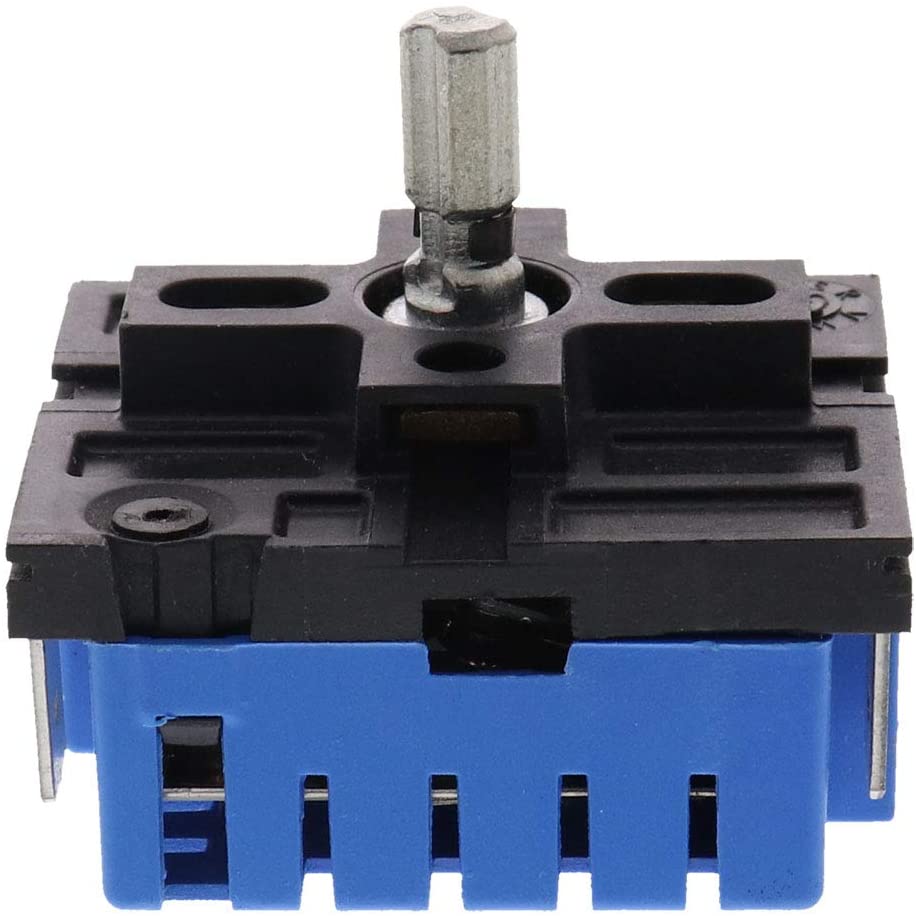

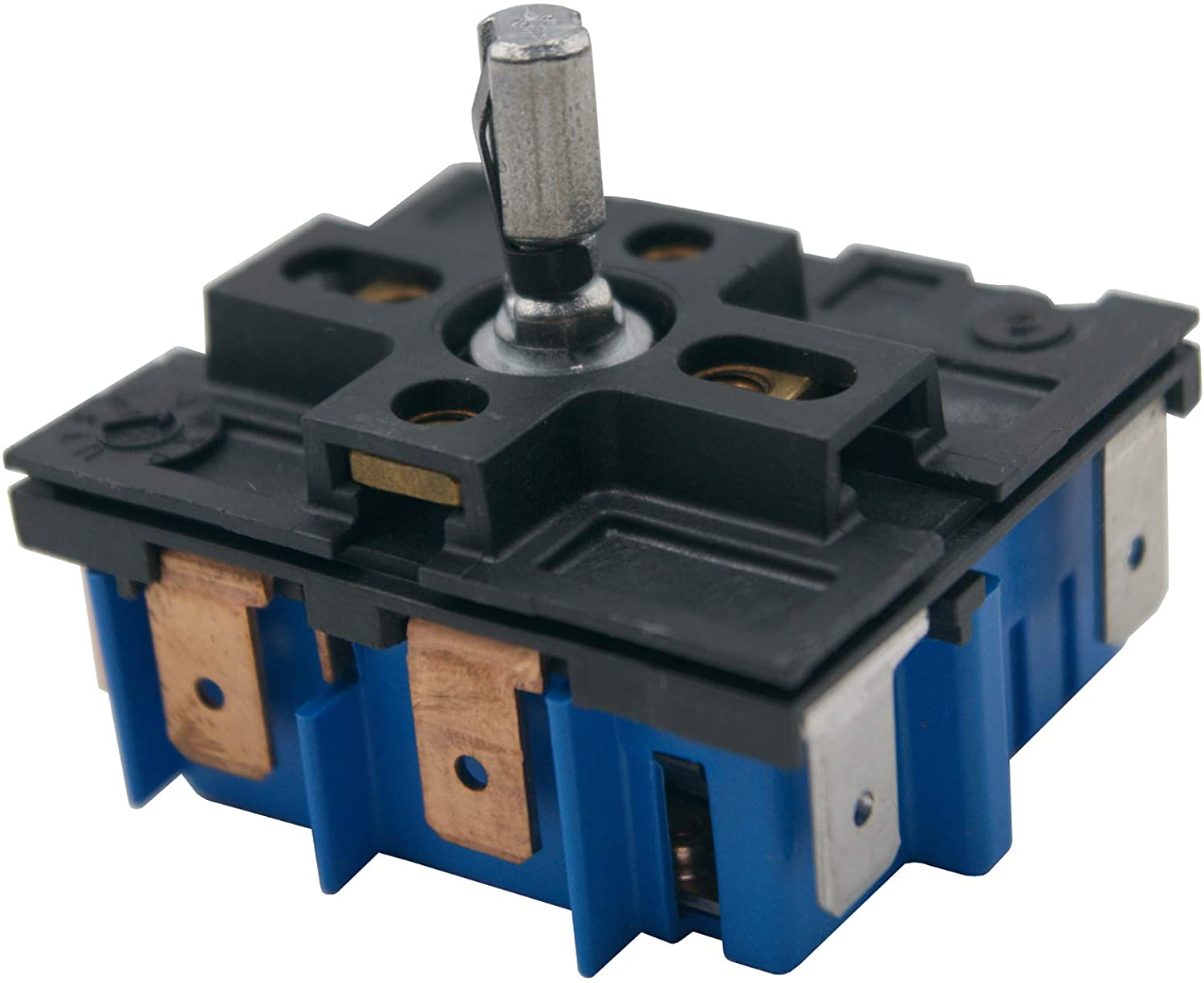

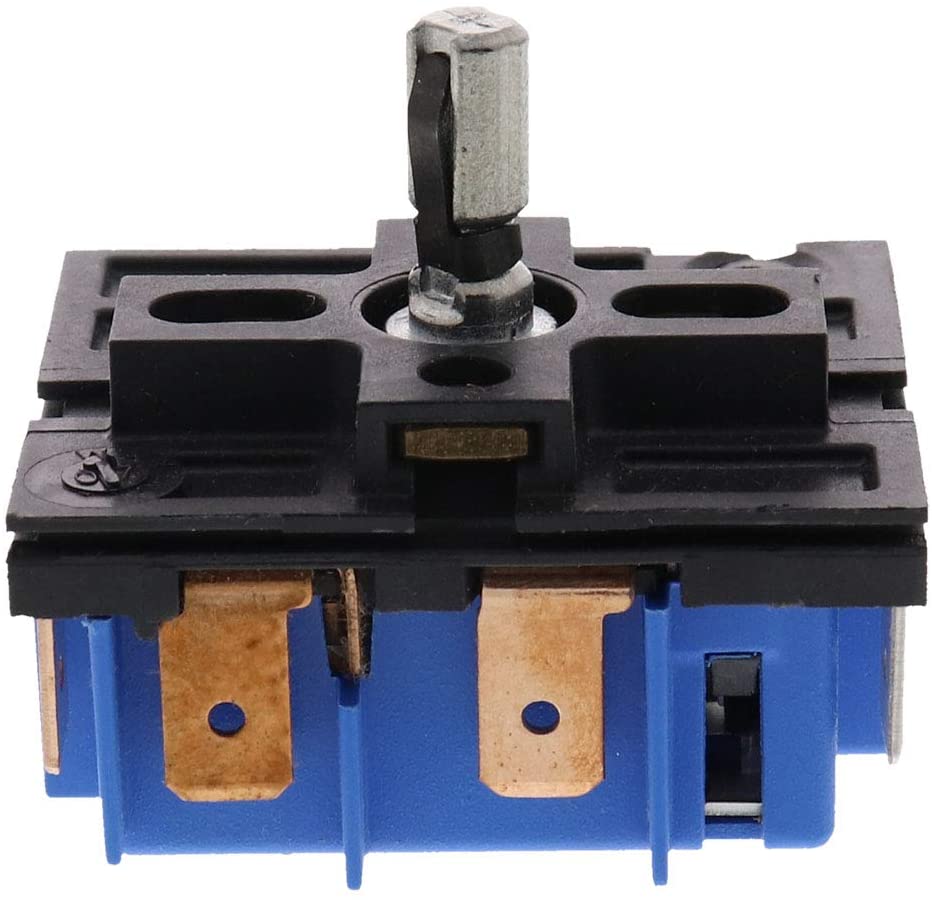

W10434452 Dual Surface Element Switch – Replaces WPW10434452 – Compatible with Whirlpool, Maytag & KitchenAid Ranges

Product Description

Restore precise burner temperature control with the W10434452 Dual Surface Element Switch, an aftermarket replacement designed to manage dual-size surface elements on electric ranges. This switch allows you to control both the inner and outer heating elements for flexible cooking performance. A faulty surface element switch may cause burners not to heat, overheat, or remain stuck on one setting. Replacing it helps restore safe, responsive burner operation and consistent cooking results.

This replacement part is manufactured to OEM-equivalent specifications and offers reliable performance at a cost-effective price.

Replaces Part Numbers

WPW10434452, W10434452, 2118918, PD00023784, EAP11754687, AP6021365, PS11754687.

Compatibility

This replacement dual surface element switch fits select Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, and Kenmore (Whirlpool-manufactured) electric ranges.

Example compatible models include (but are not limited to):

• Whirlpool WFE515S0ES, WFE540H0AS

• Maytag MER8800FZ

• KitchenAid KERA205PB

Always verify your range’s model number before ordering.
Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Matches OEM fit and electrical performance

• 🔥 Dual-Element Control – Supports both inner and outer burner elements

• 🎛️ Smooth Temperature Adjustment – Restores accurate heat control

• 💪 Durable Internal Contacts – Designed for long service life

• 💰 Cost-Effective Repair – Reliable alternative to OEM switch pricing

📐 Product Specification

• Part Number: W10434452

• Component Type: Dual Surface Element Control Switch

• Voltage: 240V

• Function: Controls dual-size surface heating elements

• Mounting: Control panel shaft-mounted

• Terminal Type: Spade terminals

• Quality Level: Aftermarket replacement (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, nut driver

⚠️ Safety First: Disconnect power at the breaker before servicing the range to avoid electrical shock.

Basic Steps:

1. Turn off power to the range at the breaker.

2. Remove the control knob and access the control panel.

3. Label and disconnect wires from the old switch.

4. Remove mounting screws and take out the old switch.

5. Install the new W10434452 switch and reconnect wiring.

6. Reassemble the control panel and restore power.

7. Test burner operation.

⏱️ Time Required: 20–30 minutes
