W10189190 Refrigerator Overload, Relay and Capacitor Replaces WPW10189190, WPW10662129

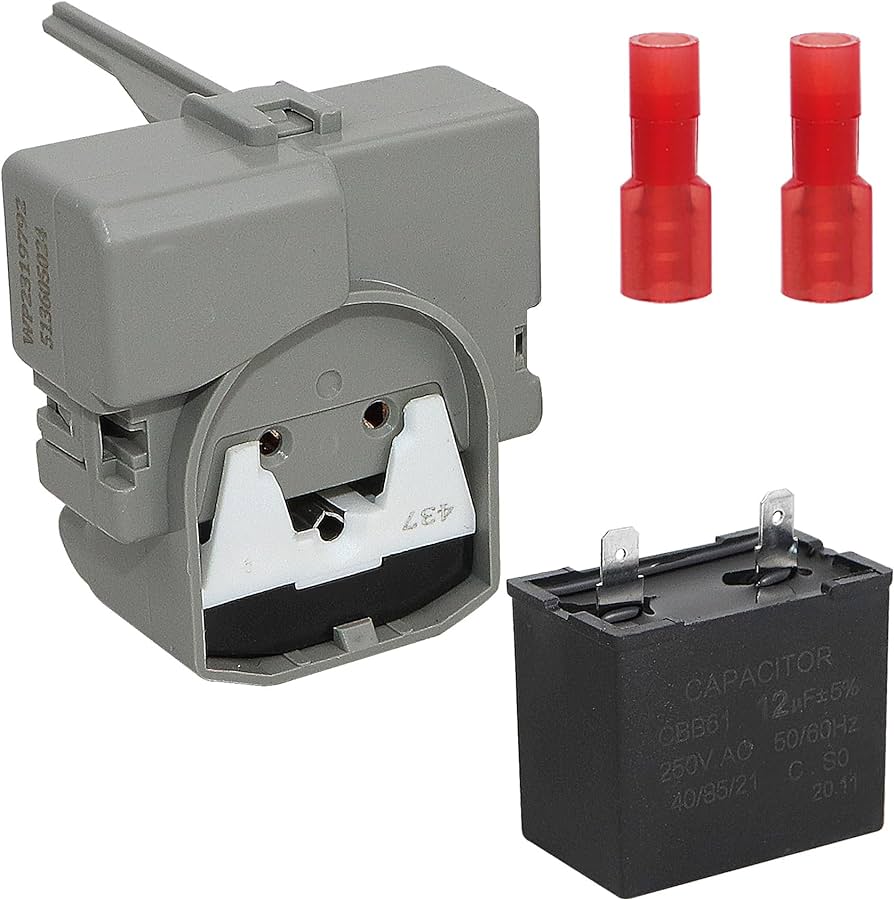

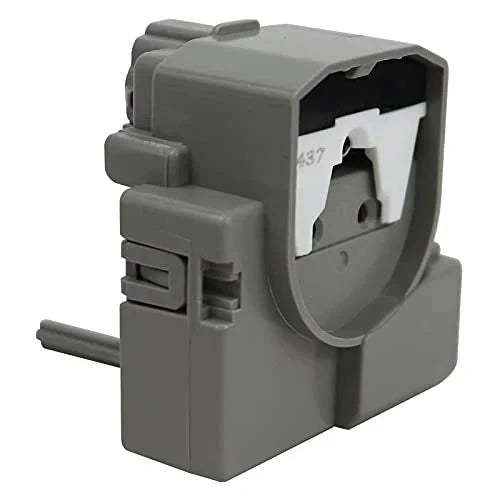

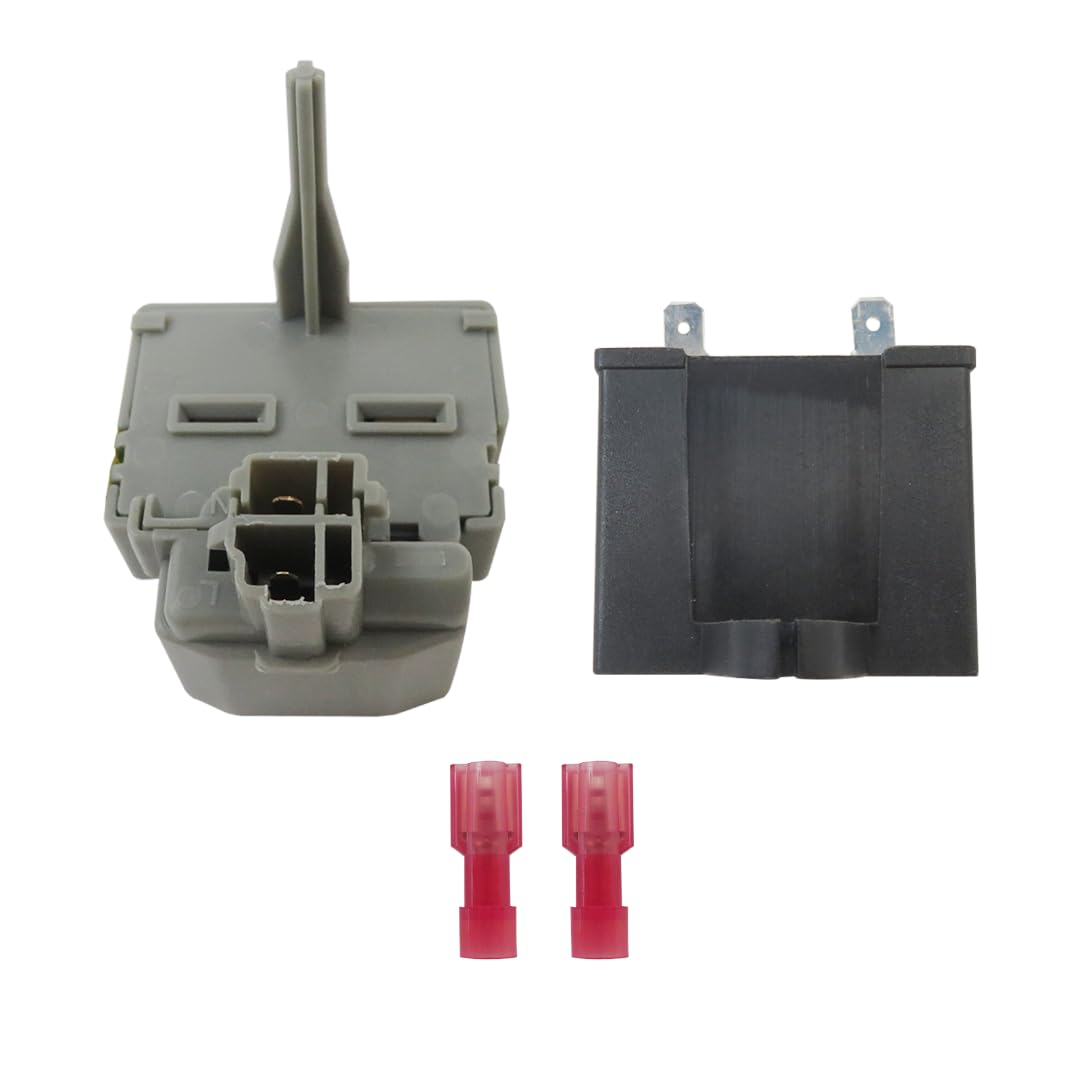

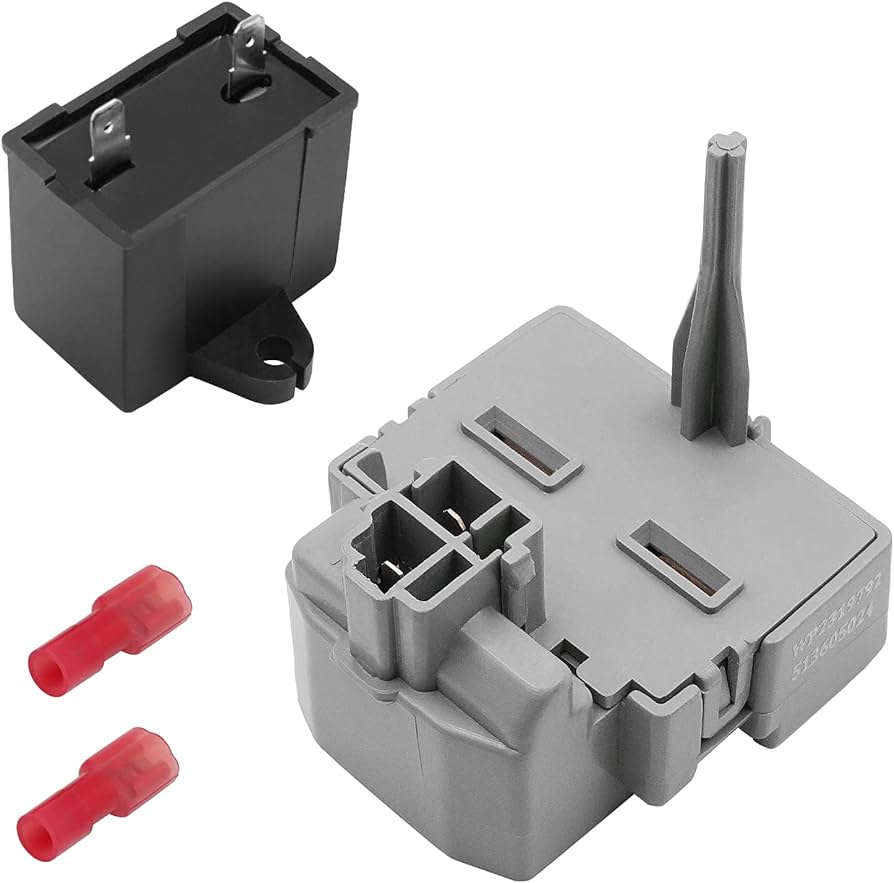

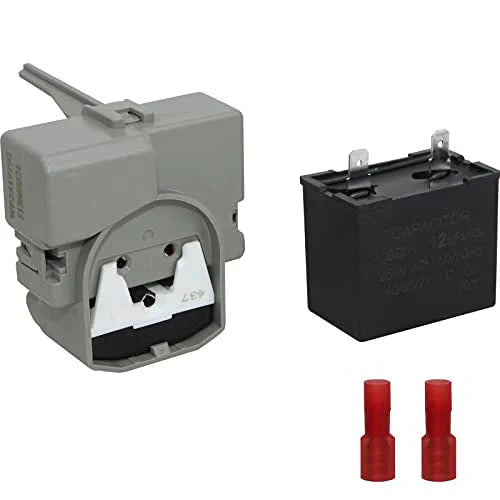

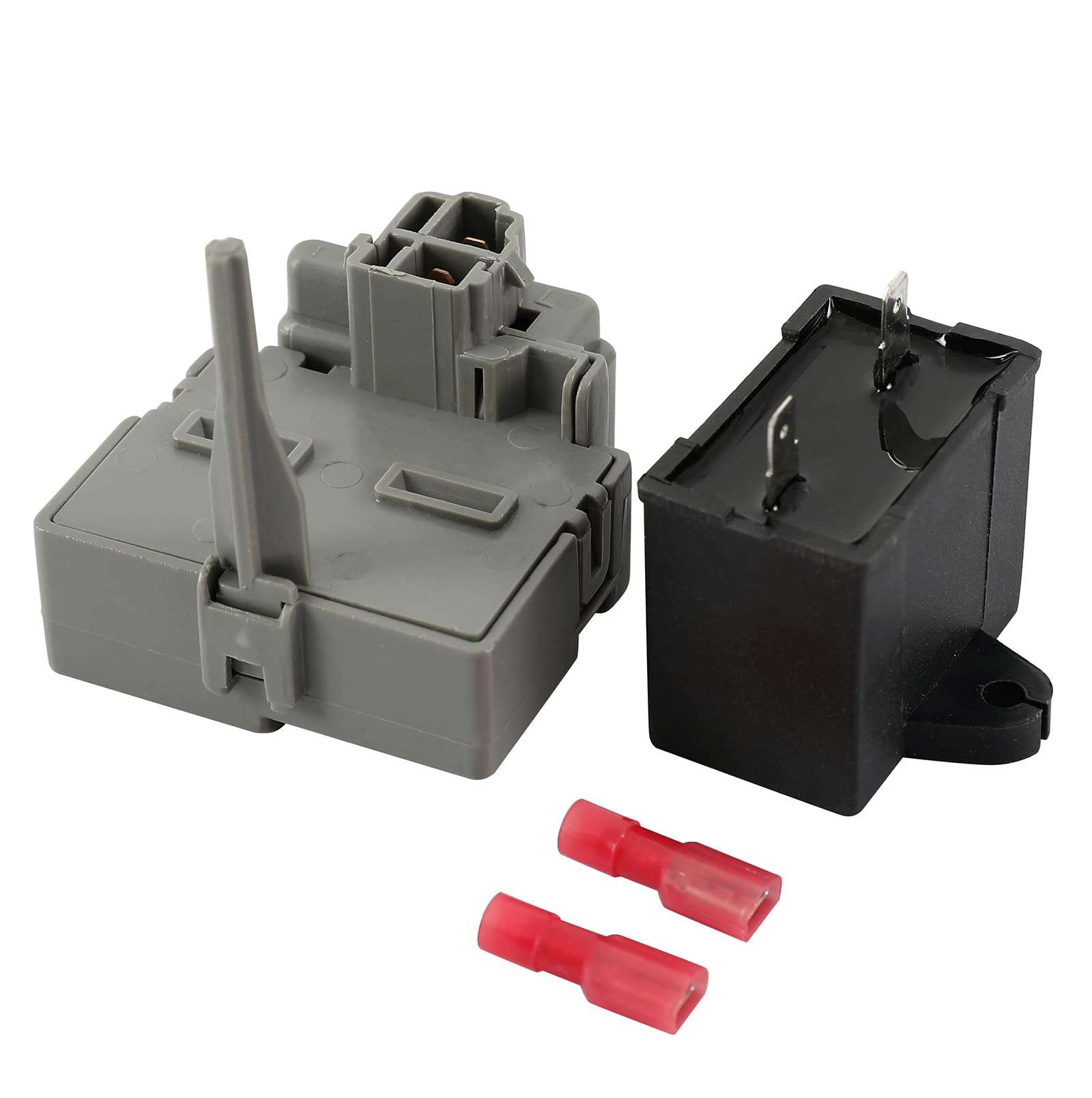

XPARTCO W10189190 Refrigerator Compressor Overload, Start Relay and run capacitor – Compatible with Whirlpool, Kenmore, Maytag, and Amana Refrigerators

Product Description

Fix refrigerator cooling issues with the XPARTCO W10189190 Refrigerator Compressor Overload, Start Relay and run Capacitor. This high-quality replacement helps start the compressor and protects it from overheating. A faulty relay or overload can cause clicking sounds, failure to start, or cooling loss. Replacing it with this reliable and affordable replacement restores proper compressor function and cooling performance.

Relay & Overload Replaces Part Numbers

WPW10189190, W10189190, 10097201, 14200214, 14203585, 1481748, 18516-3, 2-35154-010, 2255554, 2319793, 4344041, 4357156, 61002047, 61002971, 65529-1, 68001457, 68001622, W10197427, Y0303053, Y0313053, AP6016586, PS11749877, WPW10197428, W10128791, W10128795, W10197428, 1547199, AP6016830, PS11750123, WP2319792, 2319792, 1195945, 2255198, PS11740412, AP6007299, 297237702, 241527803, 2026081, 241527801, 297237800, 5304492394, 7297237800, AH3502347, EA3502347, AP5306469, PS3502347, 241941003, 1512917, 297237701, 7241941003, PD00002938, EAP11749877, AH2358826, EA2358826, AP4393217, PS2358826.

Run Capacitor Replaces Part Numbers:

WPW10662129, 2169373, W10662129, 09100136, 09100156, 09100173, 1100804, 1114291, 1118576, 1118581, 14201635, 14224144, 2169136, 2169383, 2188516, 2264017, 3281880, 4312484, 4356442, 4356601, 4356995, 4357055, 4357094, 4390503, 4390930, 60001028, 65889-2, 65889-6, 68001280, 69001105, 8199858, 945508, 999532, C8931601, C8931602, C8931607, R0213143, R0213187, R0651012, R0660030, R0950186, R9800532, W10590083, W10658690, WPW10662129VP, Y09100136, Y09100156, Y09100173, PD00004989, EAP11757023, PS11757023, AP6023677.

Compatibility

This replacement relay and overload kit is compatible with select Whirlpool, Kenmore, Maytag, and Amana refrigerators.

Example compatible models include (but are not limited to): Whirlpool WRF560SEYM04, Amana ARS9168AW, and Kenmore 106.56532400.

Always verify your refrigerator’s model number before ordering. Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Compatible with Whirlpool-brand refrigerators

• ❄️ Reliable Performance – Ensures smooth compressor start-up and consistent cooling

• 💰 Affordable Solution – Quality alternative at a lower cost than OEM parts

• 🛠️ Easy Installation – Includes both overload protector and start relay

• 🛡️ Fixes Common Issues – Solves compressor not running, clicking, or no-cool problems

📐 Product Specification

• Part Number: W10189190

• Component Type: Compressor Overload, Start Relay and Capacitor Assembly

• Material: Heat-resistant plastic housing with copper terminals

• Mounting: Direct-fit replacement on compressor terminals

• Operating Conditions: Designed for standard household refrigerator use

• Compliance: Built to OEM-equivalent quality standards (not OEM)

🛠️ Installation Notes

Tools Needed: Flathead screwdriver, needle-nose pliers

⚠️ Safety First: Always unplug the refrigerator before performing repairs to prevent electrical shock.

Steps:

1. Unplug the refrigerator and move it away from the wall.

2. Remove the lower rear access panel to access the compressor.

3. Detach the old relay and overload from the compressor terminals.

4. Install the new XPARTCO W10189190 relay and overload assembly.

5. Replace the access panel and restore power.

6. Confirm the compressor starts smoothly and cooling resumes.

⏱️ Time Required: 10–15 minutes
