XP8767 Dryer Thermostat Set DC47-00018A, DC96-00887A, DC47-00016A, DC32-00007A

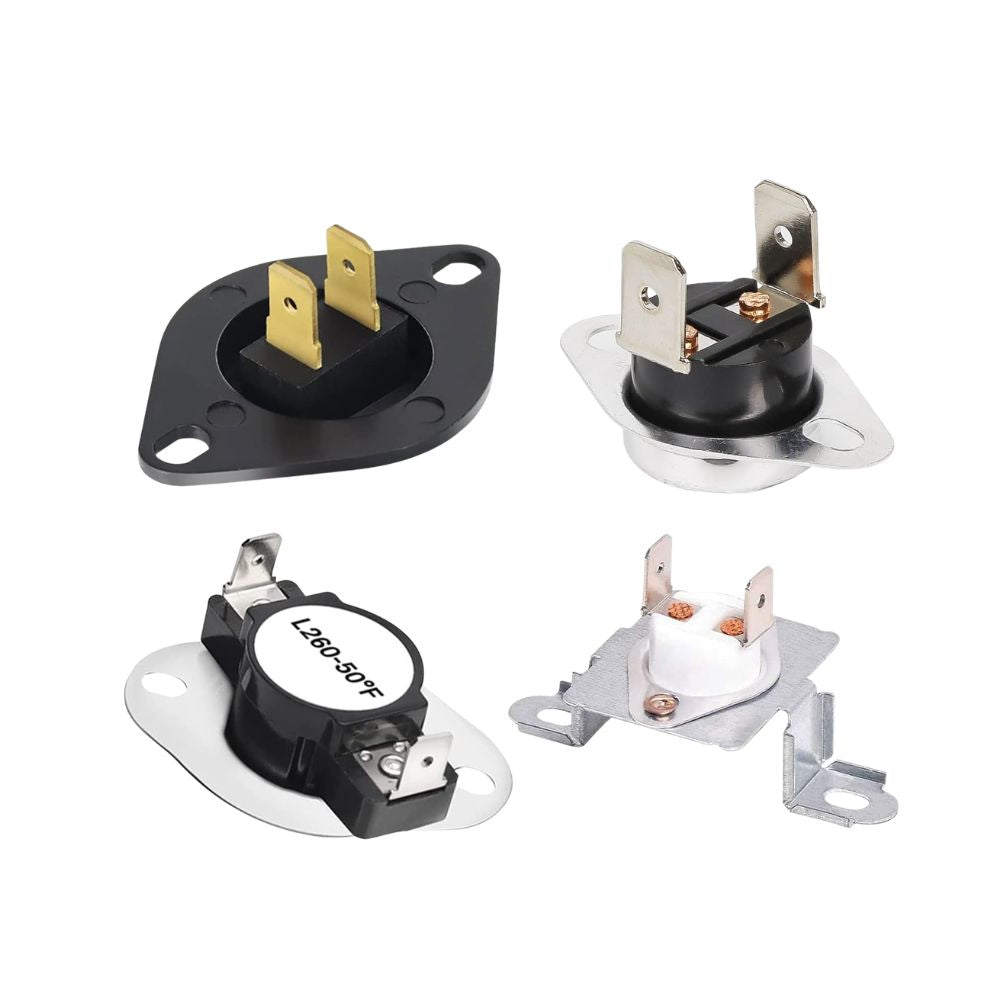

XPARTCO XP8767 Dryer Thermostat Set — DC47-00018A, DC96-00887C, DC47-00016A, DC32-00007A
The XPARTCO XP8767 is an aftermarket dryer thermal component set containing four heat-sensing and safety parts for select Samsung and Kenmore dryers. The set includes the high-limit thermostat (DC47-00018A), thermal fuse with bracket (DC96-00887C), blower housing thermal fuse (DC47-00016A), and thermistor temperature sensor (DC32-00007A) — the complete set of thermal components that regulate temperature and prevent overheating in compatible Samsung dryers.
When any one of these components fails, the dryer may produce no heat, run too hot, shut off too early, or fail to start. Because overheating events that blow a thermal fuse also stress the other thermal components, replacing all four together in a single repair is the recommended approach. The DC96-00887C replaces the DC96-00887A used in earlier models — both are included in this kit's cross-references. Installs in 20–30 minutes with basic hand tools.
Quick Answer
The XPARTCO XP8767 Dryer Thermostat Set fixes Samsung and Kenmore dryers with no heat, insufficient heat, overheating, early shutoff, or failure to start. Includes all four thermal components: DC47-00018A high-limit thermostat (L260-50), DC96-00887C thermal fuse with bracket (320°F), DC47-00016A blower housing thermal fuse, and DC32-00007A thermistor. Compatible with Samsung and Kenmore (Samsung-built) dryers.
Common Problems This Set Fixes
- Dryer produces no heat — thermal fuse or high-limit thermostat has failed
- Dryer produces insufficient heat — thermistor not regulating temperature correctly
- Dryer shuts off too early before clothes are dry
- Dryer will not start at all
- Dryer overheats — drum or clothes too hot at end of cycle
- Dryer cycle runs but timer does not advance
- Clothes not drying properly despite the dryer running normally

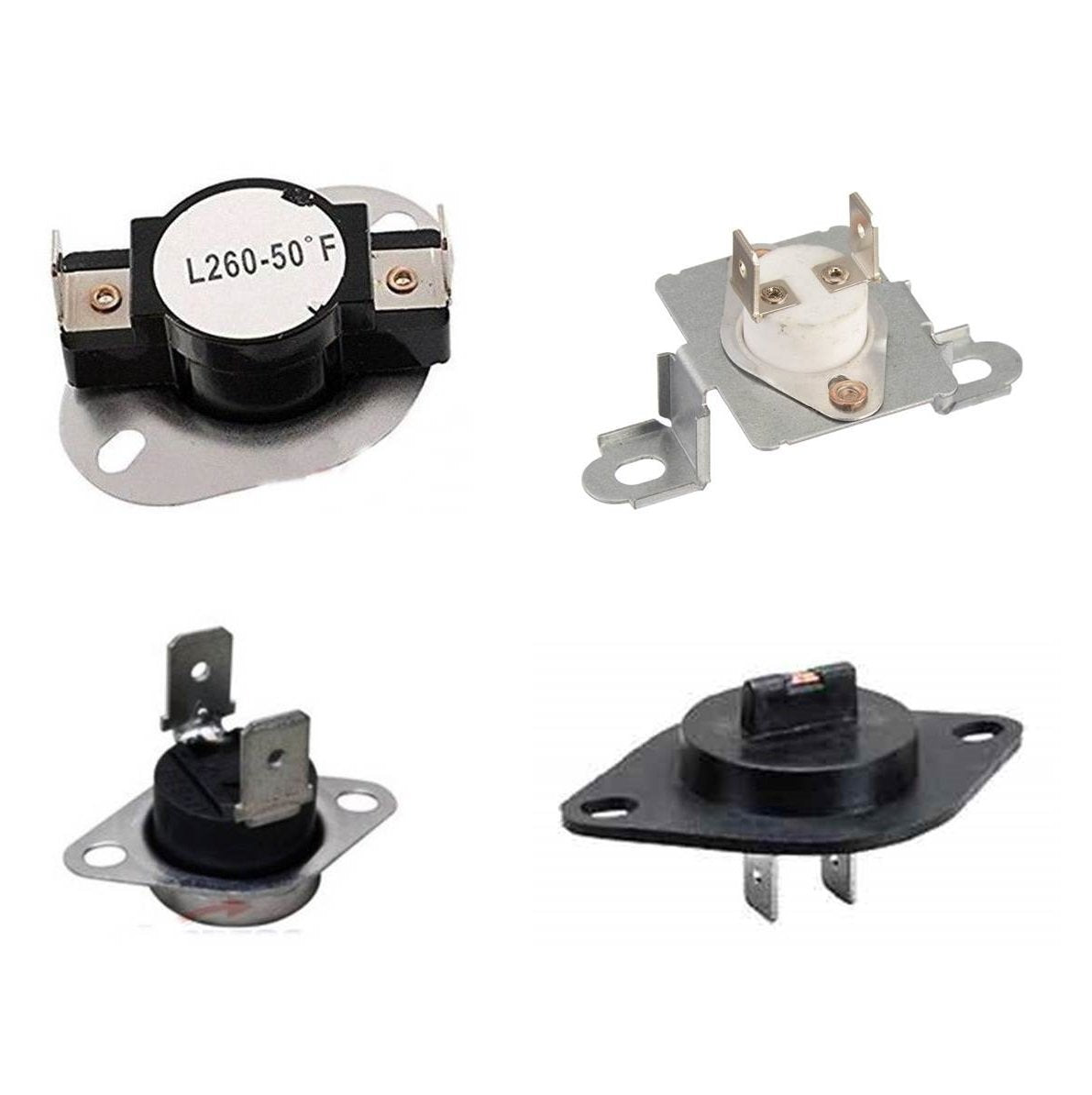

What's in the Set
Replaces Part Numbers

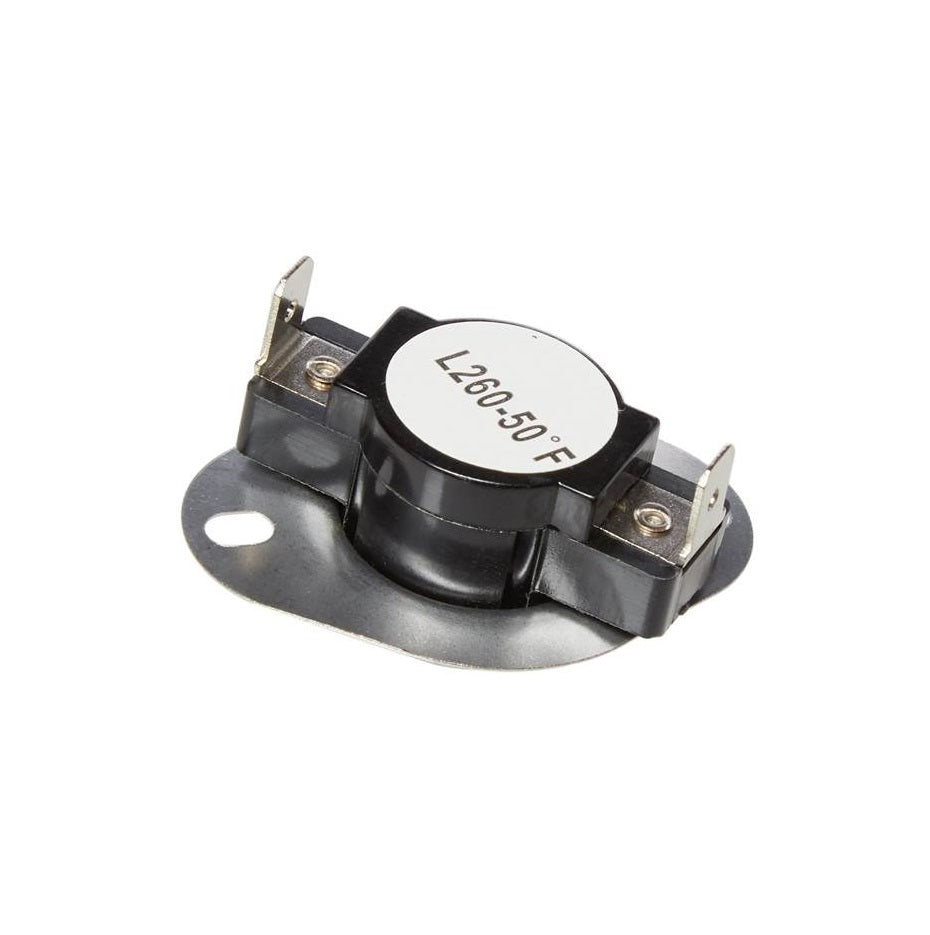

- DC47-00018A Dryer Hi Limit Thermostat Dryer high-limit thermostat, L260-50F. Replaces Parts Numbers: DC47-00018A, AP4201898, EAP2430930, PS2430930, ASM33627, PD00002011, 35001092, WP35001092, ASM33627, PD00004704, EAP11741822, AP6008682, PS11741822.

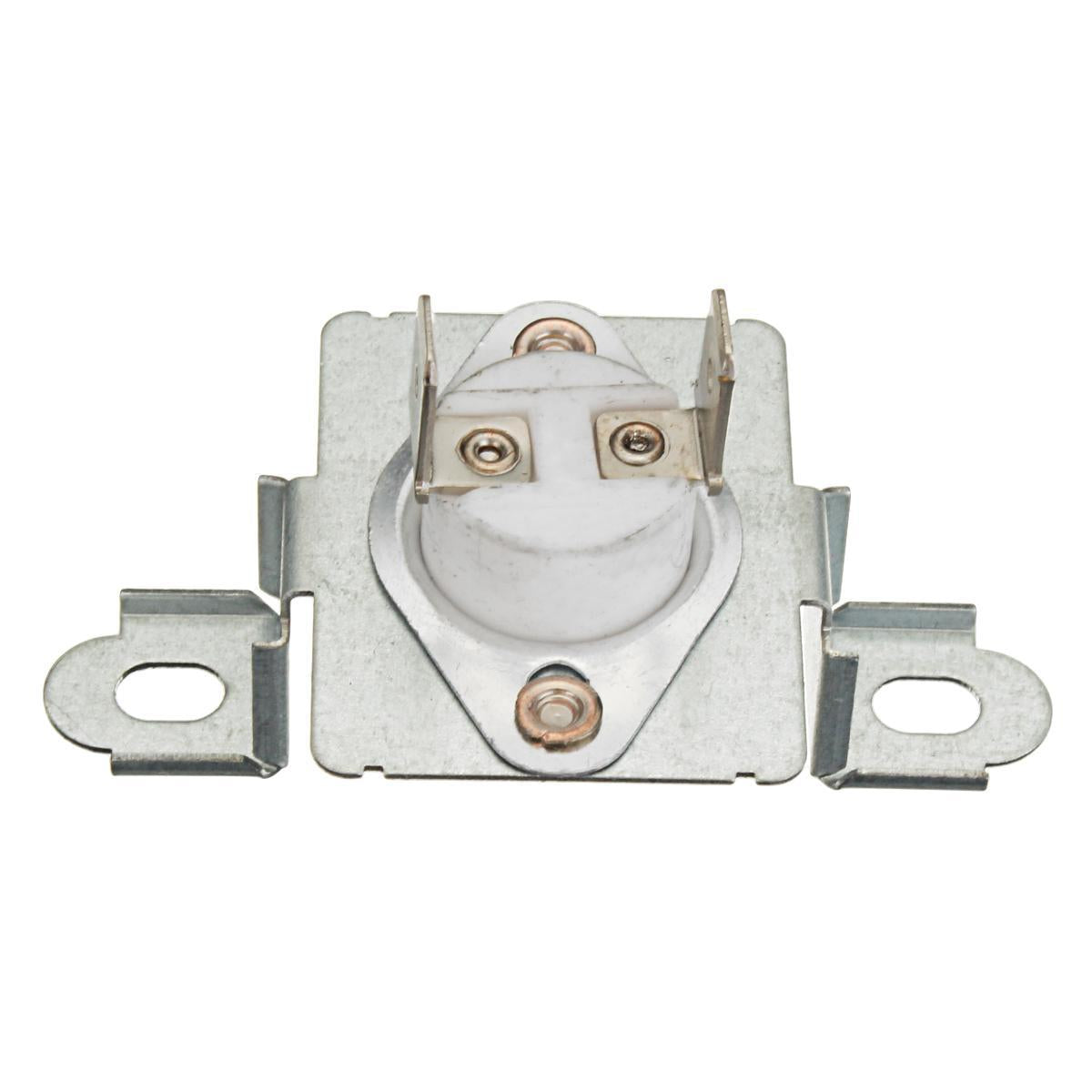

- DC96-00887C Dryer Thermal Cut Off The fuse is not re-settable and will need to be replaced if blown. If the dryer does not heat, the thermal fuse may be blown. Replaces Part Numbers: DC96-00887C, DC96-00887A, ASM65115, PD00035400, AP4207819, EAP4216838, PS4216838, 2074129, WP35001193, 35001193, EAP11741829, AP6008689, PS11741829, AWP47381, PD00003365.

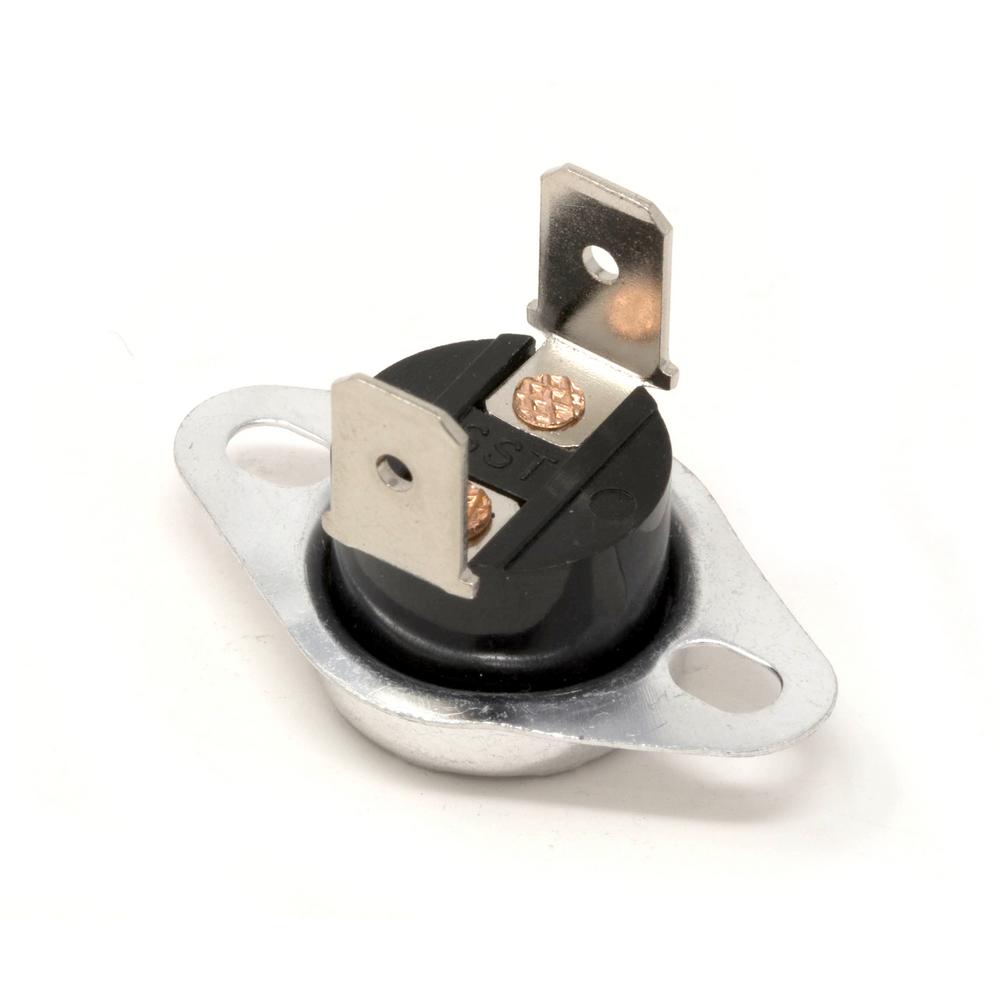

- DC47-00016A Dryer Thermostat Replaces Part Number: DC47-00016A, 2068545, ASM868996, PD00003747, AP4201894, PS4205213, WP35001087, 35001087, AWP47334, PD00003747, AP6008681, PS11741821.

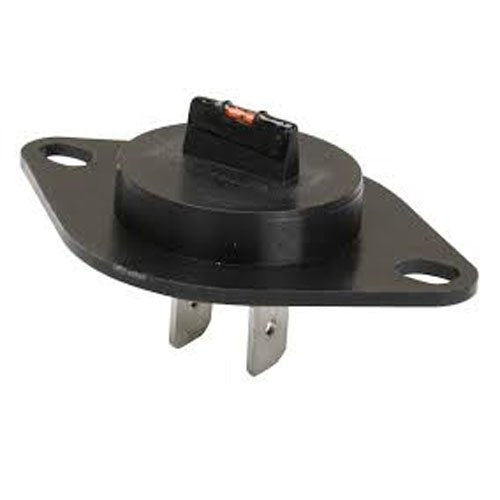

- DC32-00007A Dryer Thermistor: Dryers Replacement Thermistor Replaces Part Numbers: DC32-00007A, ASM654843, PD00001996, 2068429, AP4201716, PS4204984, WP35001191, 35001191, 1185513, AH2038482, PD00003059, EAP11741828, AP6008688, PS11741828.
If your part number is not listed above, contact our support team before ordering and we will verify compatibility.
Compatibility
This thermostat set is compatible with select dryers from the following brands:
- Samsung dryers (gas and electric — DV, DVE, DVG series)
- Kenmore / Sears dryers (select Samsung-built models)
Important: If a thermal fuse has blown, always check for the root cause before replacing — a clogged exhaust vent is the most common cause of dryer overheating. Clean the full length of the exhaust duct before running the dryer after this repair.
Key Features
- Complete 4-part thermal set — covers all Samsung dryer thermal components in a single repair
- DC47-00018A high-limit thermostat (L260-50) — auto-resets; cuts heating element power at 260°F
- DC96-00887C thermal fuse with bracket (320°F) — one-time safety device; replaces DC96-00887A used in earlier models
- DC47-00016A thermal fuse on blower housing — one-time safety device that protects the motor
- DC32-00007A thermistor — monitors real-time drum temperature and communicates with the control board to regulate drying cycles
- Replacing all four parts together renews the complete thermal circuit — prevents recurrence if a failing component caused the fuse to blow
- Compatible with Samsung DV, DVE, and DVG series dryers and Samsung-built Kenmore models
- Aftermarket replacement built to OEM-equivalent quality standards
- DIY repair — installs in 20–30 minutes with basic hand tools
Product Specifications
| Set Part Number | XP8767 |
| Condition | Aftermarket Replacement |
| Application | Samsung and Kenmore Gas and Electric Dryers |
| Set Includes | 1x DC47-00018A High-Limit Thermostat, 1x DC96-00887C Thermal Fuse with Bracket, 1x DC47-00016A Thermal Fuse, 1x DC32-00007A Thermistor |
| DC47-00018A Rating | L260-50 — opens at 260°F (127°C), resets at 210°F (99°C) — auto-resets |
| DC96-00887C Trip Temp | 320°F (160°C) — one-time, non-resettable |
| DC47-00016A | One-time thermal fuse on blower housing — non-resettable |
| DC32-00007A | Thermistor — resistance varies with temperature; communicates with control board |
| Compatible Brands | Samsung, Kenmore (Samsung-built) |
Installation Notes
Frequently Asked Questions
What does each part in this set do?
The DC47-00018A high-limit thermostat monitors the heating element temperature and cuts power to the element at 260°F if the dryer gets too hot — it resets automatically when cooled. The DC96-00887C thermal fuse is a one-time safety device on the exhaust duct that permanently cuts power to the heat source at 320°F if the dryer overheats. The DC47-00016A is a second one-time thermal fuse on the blower housing that cuts power to the motor if overheating occurs there. The DC32-00007A thermistor monitors real-time drum temperature and sends resistance-based readings to the control board, which uses them to regulate the drying cycle and control the heating element.
What is the difference between DC96-00887A and DC96-00887C?
The DC96-00887C is the updated current part number that superseded the DC96-00887A. Both are the same thermal fuse with bracket used on the exhaust duct — the C suffix denotes a minor revision. Either part number is covered by this kit and both are fully interchangeable.
How do I test these parts with a multimeter?
Set the multimeter to continuity or resistance mode. At room temperature, the DC47-00018A high-limit thermostat and both thermal fuses (DC96-00887C and DC47-00016A) should all show closed continuity (near-zero resistance). Any of these that reads open (no continuity) has failed. The DC32-00007A thermistor should show a resistance reading at room temperature — typically around 10,000–50,000 ohms depending on ambient temperature — rather than zero or open. A thermistor that reads open or zero at room temperature has failed.
Why should I replace all four parts instead of just the one that failed?
When a thermal fuse blows in a Samsung dryer, it almost always means the dryer overheated — and that overheating event stresses all four thermal components simultaneously. Replacing just the blown fuse without replacing the other parts risks a repeat failure if the thermistor is providing incorrect readings or the high-limit thermostat is no longer protecting accurately. Replacing all four parts at once renews the entire thermal circuit and reduces the chance of a repeat failure in the near future.
Is this set for electric and gas Samsung dryers?
Yes — the XP8767 set is compatible with both electric (DVE series) and gas (DVG series) Samsung dryers that use these four thermal components. Always verify your specific model number before ordering to confirm all four parts apply to your dryer.
