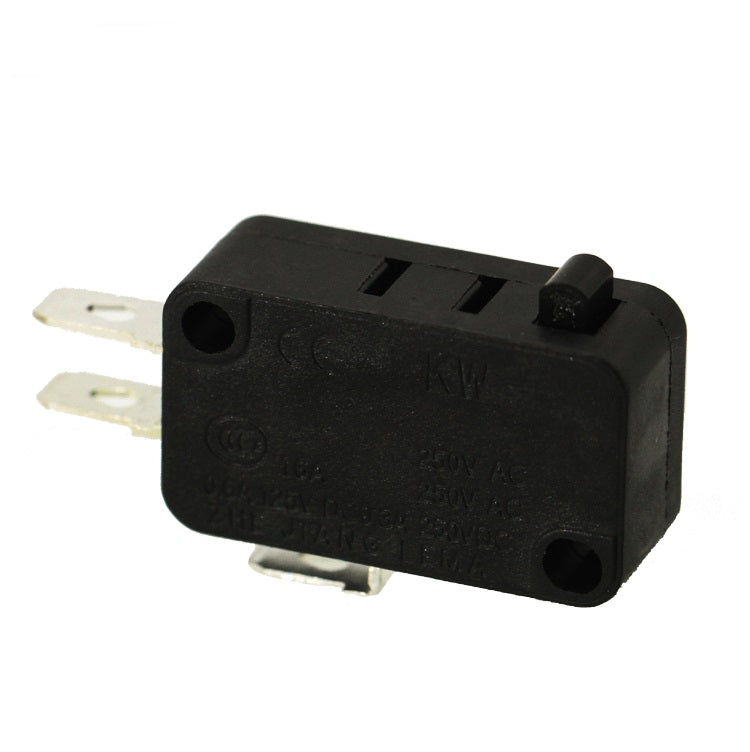

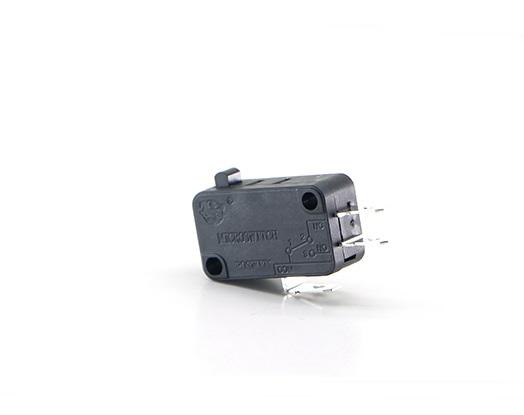

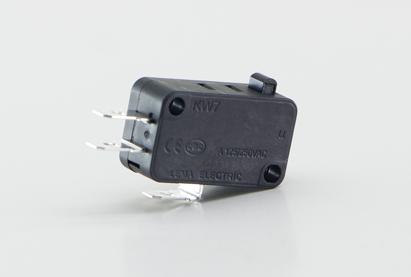

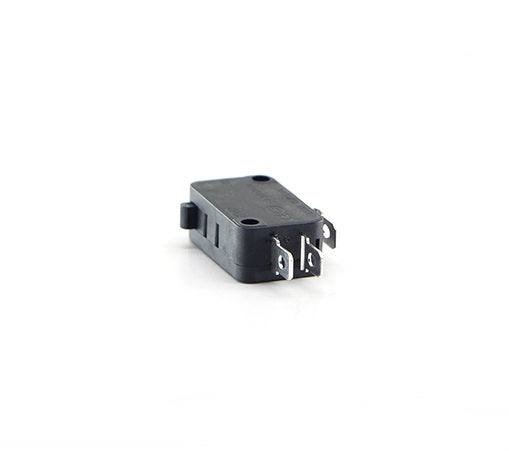

EXP490 Microwave Door Switch (NC - NO) Normally Closed / Open

EXP490 Microwave Door Switch (NC - NO) Normally Closed / Open

• 16 Amp, 3 Terminal Switch

Replaces Part Numbers:
4392027, AP3109474, PS373050, WB24X10103, AP3186054, PS651389, 3405-001032, AP4044473, PS4131190, 3405-001032, 111697, 2028595, 3405-000175, AP4044473, PS4131190, WB24X10039, 875085, AH237007, EA237007, AP2024377, PS237007,

Description: This Microwave Door Switch is a replacement part for specific microwave models. It is crucial for safety functionality as it detects when the door is properly closed and latched before initiating cooking cycles. The switch prevents operation if the door is ajar.

Quick Details

• Model Number:  EXP490
• Max. Current:  16A
• Max. Voltage: 250VAC
• Operating Temperature:  -25℃ to +85℃
• Protection Level:  IP40
• Approvals: CCC CE UL VDE
• Protection Degree: IP40
• Contact form: SPDT
• Color:  Black
• Mounting Size: 22.2*10.3mm
• Size: 27.8*10.3*15.9mm
• Operating Force:  25g(0.245N)-400g(3.92N)
• Material:  Plastic
