9759242 Oven Thermal Fuse Replaces WP9759242

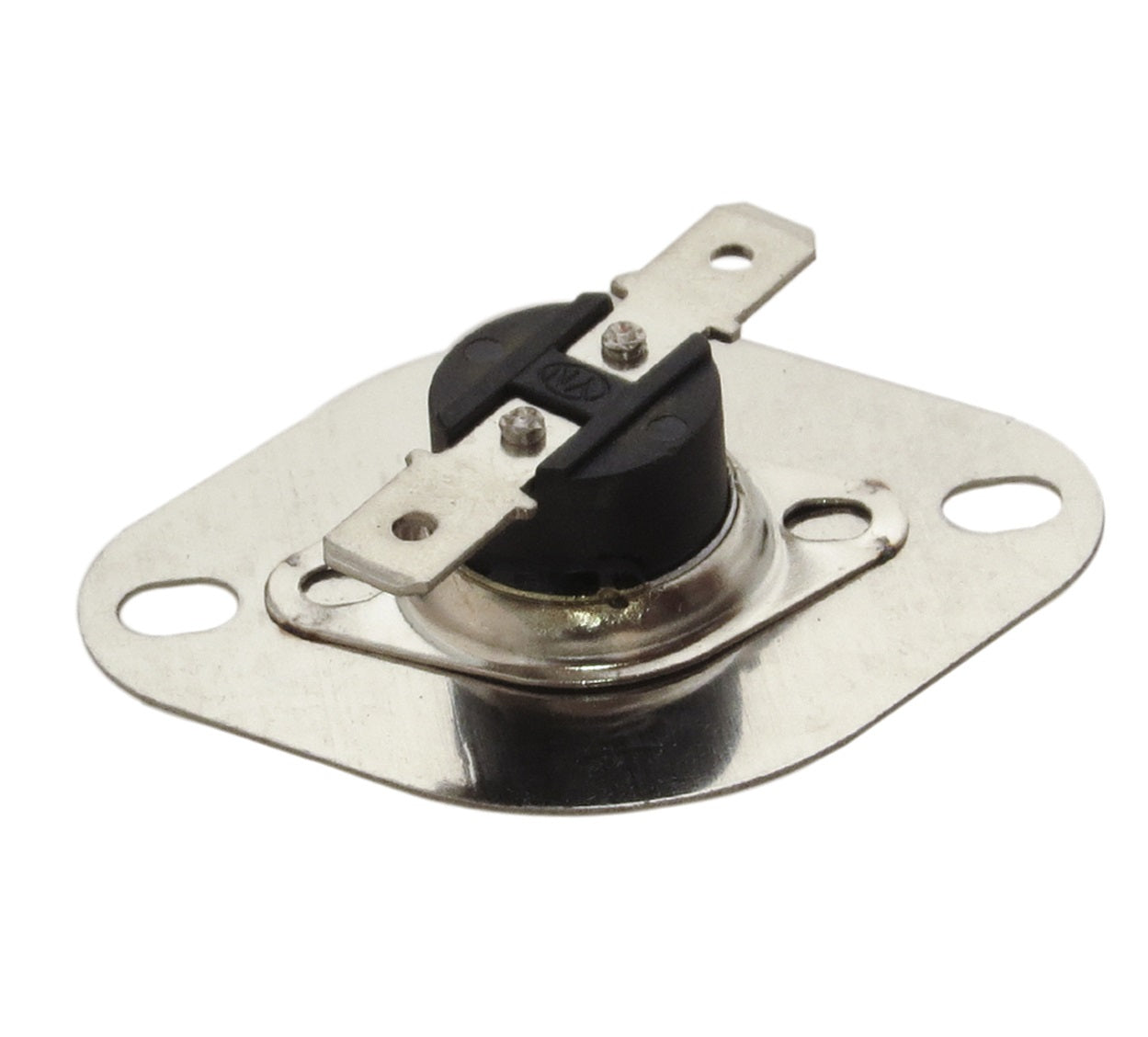

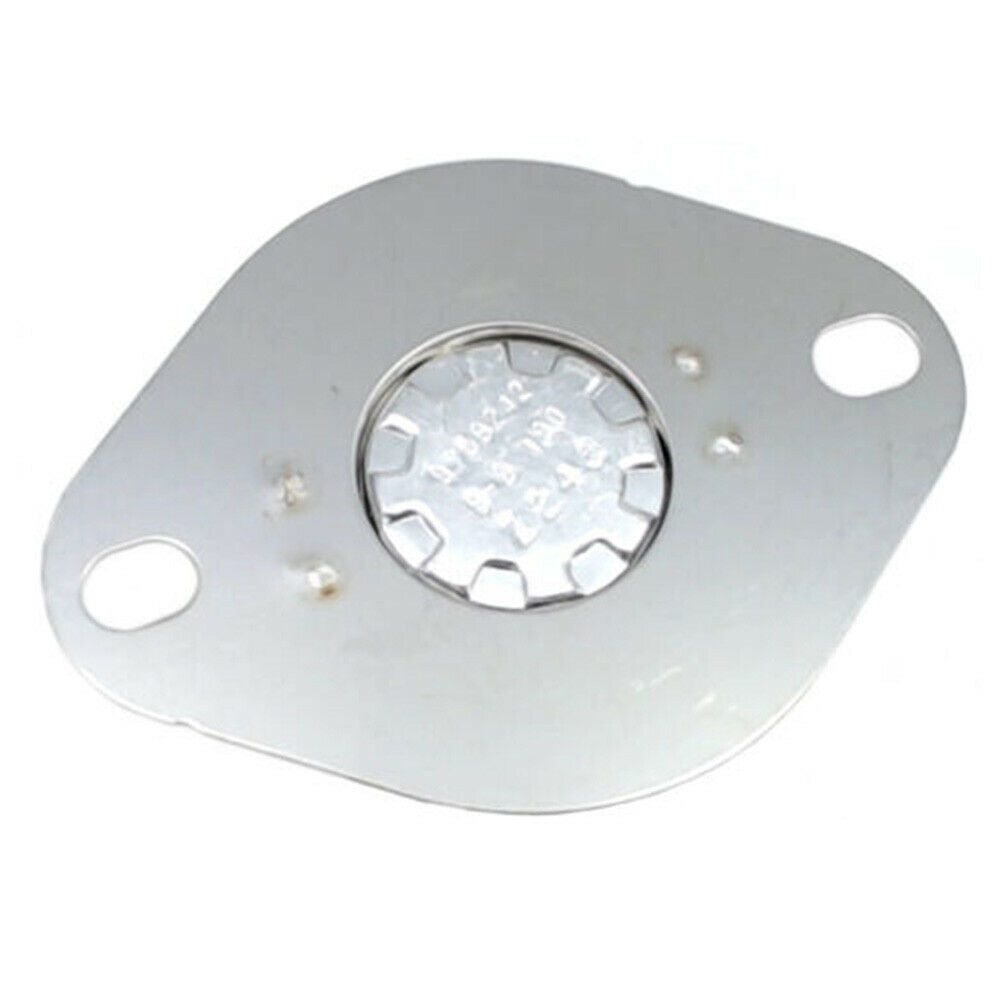

XPARTCO 9759242 Oven Thermal Fuse – Replaces WP9759242 – Compatible with Whirlpool, KitchenAid, and Maytag Ovens

Product Description

Protect your oven from overheating with the XPARTCO 9759242 Oven Thermal Fuse. This Thermal Fuse is a replacement part for specific KitchenAid, Kenmore, Whirlpool oven models. It acts as a safety device that cuts off power to the oven if it overheats, preventing potential damage or fire hazards. Common causes of a bad thermal fuse can include prolonged exposure to high temperatures, electrical surges, or faulty oven components that cause overheating. When the fuse blows, it disrupts the electrical circuit, rendering the oven inoperative until the fuse is replaced.

This non resettable oven thermal cut out fuse acts as a safety cutting power to the oven if it becomes over heated.

Replaces Part Numbers

WP9759242, 9759242, 4452223, WP9759242VP, PD00002614, AP6014015, PS11747248.

Compatibility

This replacement thermal fuse fits select Whirlpool, KitchenAid, and Maytag wall ovens and ranges.

Example compatible models include (but are not limited to): Whirlpool GBS307PDB10, KitchenAid KEBS107SSS02, and Maytag MEW5530DAB.

Always verify your oven’s model number before ordering. Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Designed to match OEM safety and performance standards

• 🔥 Overheat Protection – Automatically shuts off power if the oven exceeds safe temperatures

• 💰 Affordable Solution – Reliable performance at a lower cost than OEM versions

• 🛠️ DIY Installation – Simple, direct-fit design for quick replacement

• 🛡️ Fixes Common Issues – Solves ovens not powering on, no heat, or overheating problems

📐 Product Specification

• Part Number: 9759242 (Replaces WP9759242)

• Component Type: Oven Thermal Fuse

• Material: Heat-resistant ceramic and metal construction

• Mounting: Direct-fit on back panel or control area (varies by model)

• Operating Conditions: Opens circuit when temperature exceeds factory safety limit

• Compliance: Built to OEM-equivalent quality standards (not OEM)

🛠️ Installation Notes

Tools Needed: Nut driver, Phillips screwdriver

⚠️ Safety First: Always disconnect power at the circuit breaker before servicing to prevent electrical shock.

Steps:

1. Turn off oven power at the breaker.

2. Remove the oven from the wall (for wall ovens) or access the rear panel (for ranges).

3. Locate the thermal fuse on the back of the control panel or rear cover.

4. Disconnect wires and remove mounting screws.

5. Install the new XPARTCO 9759242 fuse, reconnect wires, and reassemble panels.

6. Restore power and test oven operation.

⏱️ Time Required: 15–25 minutes
