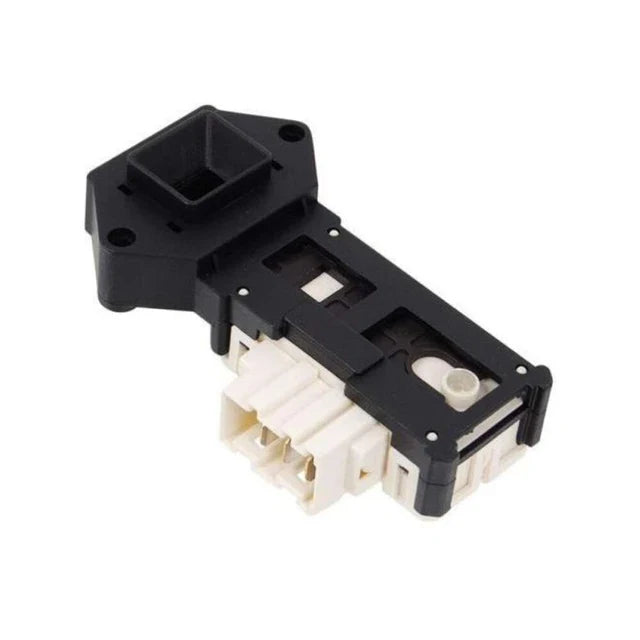

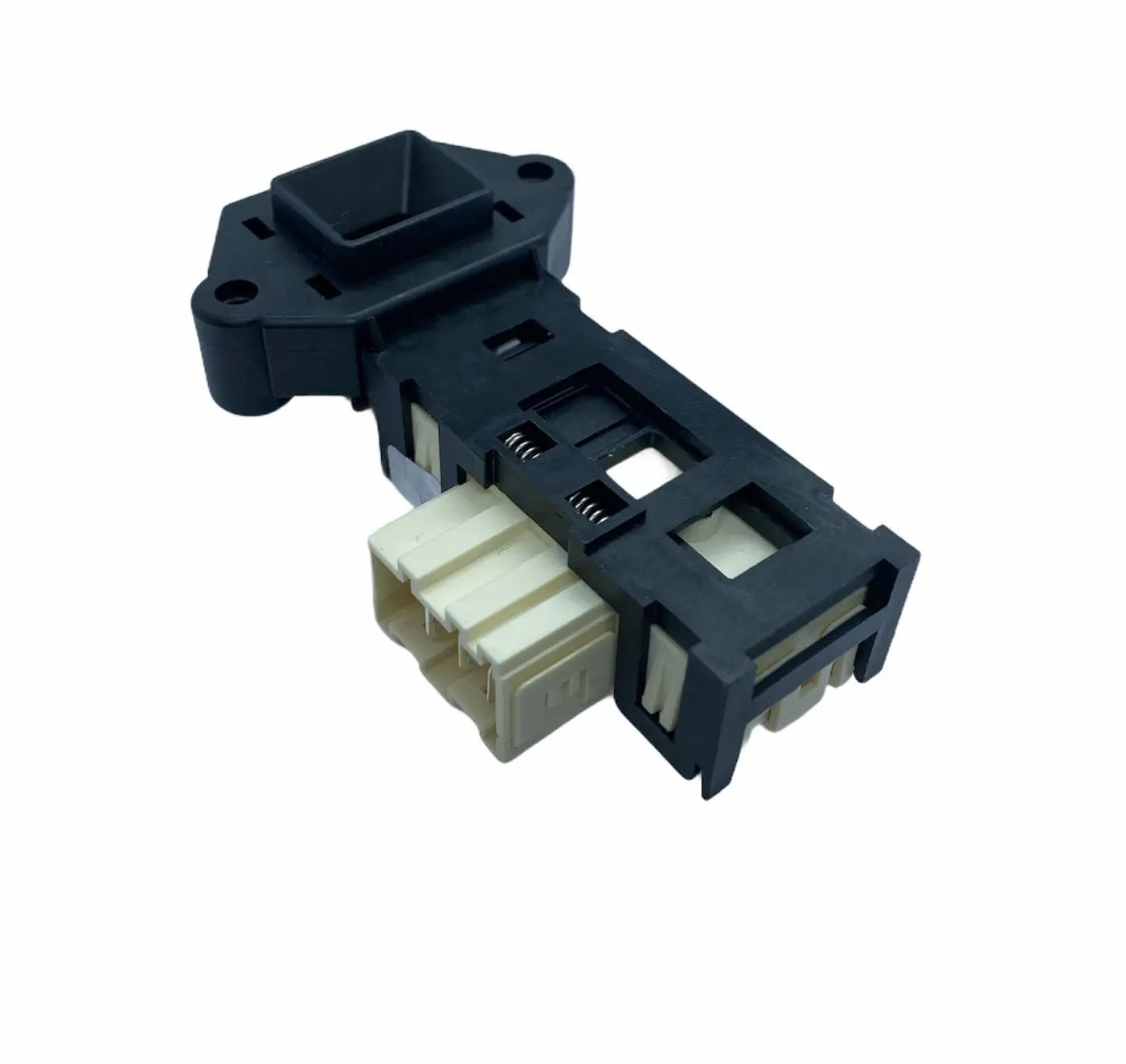

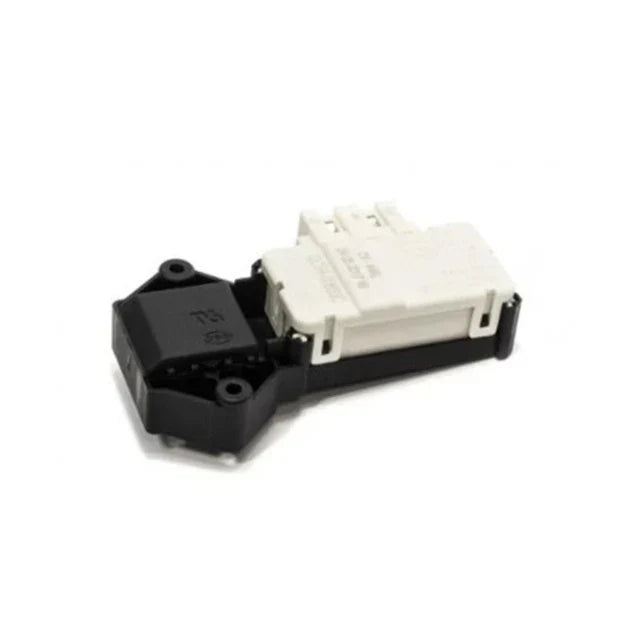

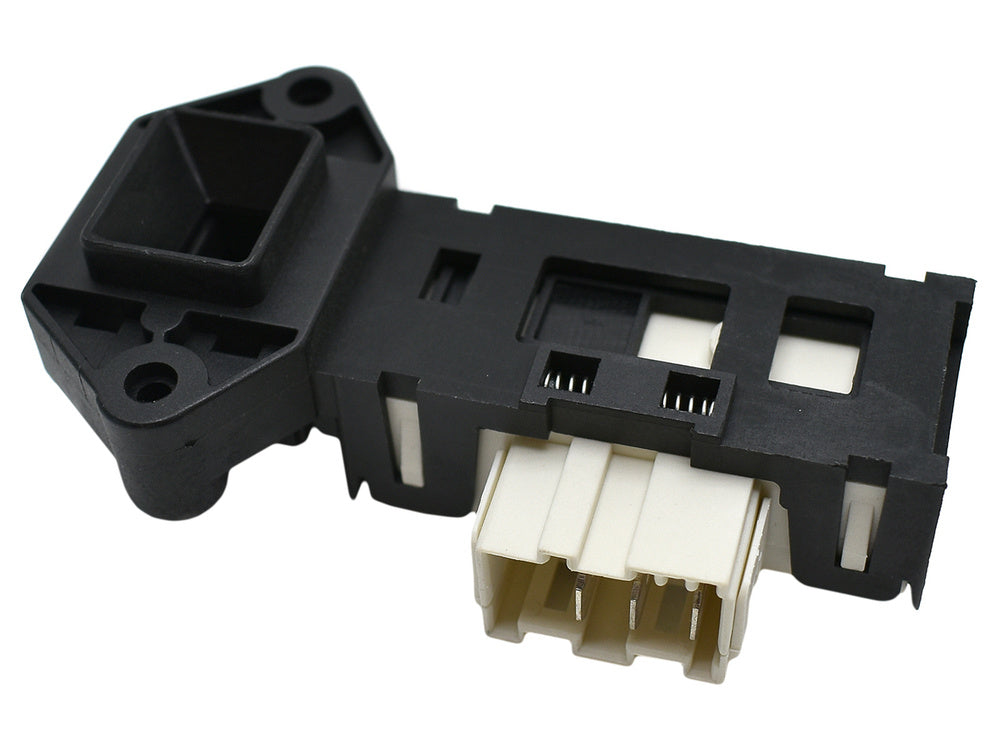

34001011 Washer Door Lock Switch Replaces WP34001011

34001011 Washer Door Lock Switch – Replaces WP34001011 – Compatible with Maytag, Whirlpool, Amana, and Crosley Washers

Product Description

Keep your washer operating safely and reliably with the 34001011 Washer Door Lock Switch. This Washer Door Lock Switch is a replacement part for specific Whirlpool Maytag Front Load Washer models. This component ensures the door is securely locked during operation, preventing it from being opened while the washer is running.  The assembly also includes a switch that communicates with the washer's control system, indicating when the door is safely locked and allowing the wash cycle to begin.

Replaces Part Numbers

WP34001011, 34001011, 4433552, PD00026721, EAP11741529, AP6008394, PS11741529.

Compatibility

This replacement door lock switch fits select Maytag, Whirlpool, Amana, and Crosley front-load washers.

Example compatible models include (but are not limited to): Maytag MAH4000AWW, Whirlpool GHW9400PW1, and Amana NFW7200TW10.

Always verify your washer’s model number before ordering. Contact our support team if you’re unsure.

✅ Key Features

• 🔄 Aftermarket Replacement – Designed to meet OEM fit and safety standards

• 🚪 Reliable Door Locking – Ensures washer door remains locked during operation

• 💰 Cost-Effective Fix – High-quality performance at a lower price than OEM parts

• 🛠️ Easy Installation – Direct-fit design with plug-in wiring harness

• 🛡️ Fixes Common Issues – Solves washer not starting, error codes, or door not locking properly

📐 Product Specification

• Part Number: 34001011 (Replaces WP34001011)

• Component Type: Washer Door Lock and Switch Assembly

• Material: Reinforced plastic housing with electrical connectors

• Mounting: Direct-fit replacement behind front panel

• Operating Conditions: Designed for high-humidity washer environments

• Compliance: Built to OEM-equivalent quality standards (not OEM)

🛠️ Installation Notes

Tools Needed: Phillips screwdriver, nut driver

⚠️ Safety First: Always unplug the washer before performing repairs to prevent electrical shock.

Steps:

1. Disconnect power and open the washer door.

2. Remove the front gasket clamp and peel back part of the door seal.

3. Unscrew and remove the old door lock assembly.

4. Install the new 34001011 lock switch, secure with screws, and reconnect wiring.

5. Reposition the door seal and reattach the clamp.

6. Restore power and test washer operation.

⏱️ Time Required: 20–25 minutes
